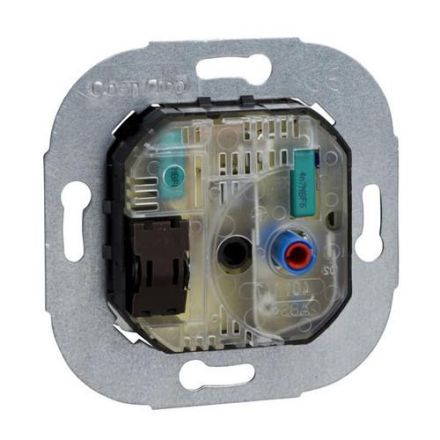

ELSO 176261 Heating/Cooling switch 5 (2) A temperature control insert

In stock

SKU: 433755

Price on request

€64.94

€0

Overview

Temperature controller insert with heating/cooling switch 5 (2) A 250V AC with two changeover contacts, with thermal feedback, for heating or cooling via a pipe system, suitable in conjunction with heat pumps, use when closed when control valves are used.

Property	Value
Color:	other
Version:	On/Off
Mounting type:	Flush-mounted
Protection class (IP):	IP30
Height:	70 mm
Width:	70 mm
Depth:	42 mm
Type of power supply:	230 V AC
Connection:	three-/four-wire
With receiver:	no
Measuring range lower value:	5 °C
Measuring range upper value:	30 °C
Sensor external:	no
Thermal feedback:	parallel
Control characteristics:	other
Heating:	yes
Number of heating outputs:	1
Cooling:	yes
Number of cooling outputs:	1
Difference value:	0.5 K
Difference adjustable:	no
Temperature readable:	no
With noise level display:	no
Sensor design:	Bimetal
With display:	no
Operation:	Rotary
With drinking water circuit:	no
Contact type:	Changeover contact
Max. Contact voltage:	230 V
Max. contact load:	5 A
Protection class (NEMA):	1
Explosion-proof:	no
Diameter:	57 mm
Temperature controller class:	I
