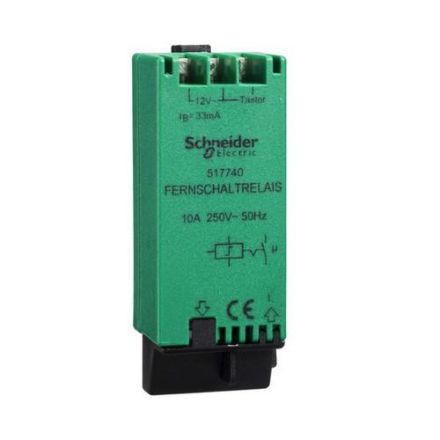

ELSO 517740 electronic remote control relay 1000W RENOVATION green

In stock

SKU: 432728

Price on request

€15.71

€0

Overview

Remote switching relay 1000 W for incandescent lamps 230 V, halogen lamps 230 V, fluorescent lamps, conventional and electronic transformers, suitable for energy saving lamps, suitable for illuminated buttons with separate N connection, control voltage: 12V AC, +30% -20%, IB 33 mA, switching voltage: 230V AC, 50 Hz, dimensions: 2 PLE color: green

Property	Value
Number of contacts as normally open:	1
Rated control supply voltage Us at AC 50 Hz:	15.6 V
Rated control supply voltage Us at AC 60 Hz:	15.6 V
Type of voltage for actuation:	AC
Design of the electrical connection:	Screw connection
Drive, polarity:	unpolarized
Height:	88 mm
Width:	25 mm
Depth:	36 mm
Switching behavior of the drive:	bistable
Type of switching contact:	single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP21
Rated current:	4.3 A
With LED display:	no
