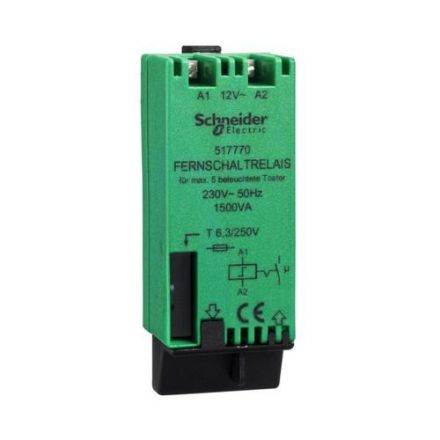

ELSO 517770 electronic remote control relay 1500VA RENOVATION green

In stock

SKU: 432628

Price on request

€22.59

€0

Overview

Remote switching relay 1500 W for incandescent lamps 230 V, halogen lamps 230 V, fluorescent lamps, conventional and electronic transformers, suitable for any existing unlit buttons as well as for illuminated buttons up to a total current consumption of 60 mA as per item no. 506110, 506130, 506210 or 506230, fuse: T6.3G/250 control voltage: 12V AC, +50% -20%, switching voltage: 230V AC, 50 Hz, dimensions: 2 PLE, not suitable for energy saving lamps, colour: green

Property	Value
Number of contacts as normally open:	1
Rated control supply voltage Us at AC 50 Hz:	18 V
Rated control supply voltage Us at AC 60 Hz:	18 V
Voltage type for actuation:	AC
Design of the electrical connection:	Screw connection
Drive, polarity:	unpolarized
Height:	88 mm
Width:	36 mm
Depth:	36 mm
Switching behavior of the drive:	bistable
Type of switching contact:	single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP21
Rated current:	6.5 A
With LED display:	no
