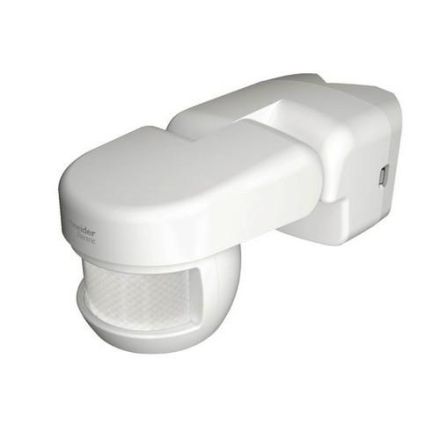

ELSO CCT56P004 Outdoor motion detector ARGUS Standard 120°

In stock
SKU: 433777
€40.03
Into a basketIn the basketGo

Overview

Motion detector for outdoor use. 120 degree area monitoring for smaller house fronts and areas of the house. Flexibly adjustable sensor head. Automatic switching of the lighting on and off. Simple operation and energy saving by setting the brightness threshold and switching duration. Weatherproof housing. Individual lens areas can be hidden. Attachment to outside/inside corners. Mains voltage: AC 220-240 V, 50 Hz. Max. switching current: 10 A, AC 220-240 V, cos Phi 0.6. Nominal power: -LED lamps: 200 W. Incandescent lamps AC 230 V: 1000 W. Halogen lamps AC 230 V: 900 W. Halogen (electronic transformer): 250 VA. Halogen (iron core transformer): 500 VA. Fluorescent tubes: 200 VA. capacitive load (6 A test current): 21 uF. capacitive load (10 A test current): 14 uF. Compact fluorescent lamps: 3x23 W. Power consumption: < 2 W. Detection angle: 120 degrees. Range: max. 12 with light sensor (sensitivity): 5-2000 lux. Time setting: from approx. 3 s to approx. 30 min, tolerance 2-6 s. Switching mode: automatic, manual operation. Connection: 3-wire, neutral conductor required. Operating temperature: -15 degrees C to +40 degrees C. Protection class: IP 55. EC directives: Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC. Color: white. Dimensions (LxWxH): 164x80x75 mm (with mounting bracket), 140x80x75 (without mounting bracket). Net weight: 226g (with mounting bracket), 205g (without mounting bracket). Scope of delivery: With mounting bracket for outside/inside corners. Color: white.

Property Value
Max. Range to one side: 6 m
Optimal installation height: 2.5 m
Design: motion detector
Color: white
Mounting type: Surface-mounted
Response brightness: 2000 lx
Protection class (IP): IP55
Max. switching capacity: 1000 W
Max. Inrush current: 10 A
Nominal voltage: 230 V
Sensor type: passive infrared
Voltage type: AC
Surface finish: glossy
Material: plastic
Surface: untreated
Material quality: other
Max. Frontal range: 12 m
Min. duty cycle: 3 s
Max. Duty cycle: 30 min
Switch-off delay: 1800 s
Horizontal detection angle: 120 °
Temperature: 40 °C
Frequency: 50 Hz
Sensor swivel range, vertical: 95 °
Sensor swivel range, horizontal: 80 °
Halogen-free: yes
Response brightness adjustable: yes
Creep-under protection/rear field monitoring: no
Constant light control: no
HVAC control: no
Forced shutdown: no
Animal corridor: no
Networkable: no
Staircase monitoring: no
Bridging switch: no
Suitable for wireless transmission: no
Remote controllable: no
Adjustable response sensitivity: no
With signal unit: no
Alarm function: no
Teach function for response brightness: no
Dimming function with dimming insert: no
Transparent: no
With remote control: no
Suitable for C load: no
With DALI interface: no
Extension input: no
Forced switching on: no
Scan angle: 120 °
Suitable for ceiling mounting: no
Suitable for wall mounting: yes
Connection type: screw terminal
Antibacterial treatment: no
Width: 140 mm
Height: 80 mm
Depth: 75 mm

Characteristics

Bridging switchNo
With signal unitNo
Response brightness2000 lux
Forced shutdownNo
Max. inrush current10 A
Scanning angle120 °
Forced switching onNo
ManufacturerELSO
HANCCT56P004
GTIN3606480145155
Dimming function with dimming insertNo
Alarm functionNo
Connection typeScrew terminal
Response sensitivity adjustableNo
Response brightness adjustableYes
Antibacterial treatmentNo
VersionMotion detector
Surface finishGlittering
Width140 mm
Detection angle horizontal120°
ColorWhite
Remote controllableNo
Frequency50Hz
Suitable for C-loadNo
Suitable for ceiling mountingNo
Suitable for wall mountingYes
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Height80 mm
Constant light controlNo
Max. duty cycle30 min
Max. range frontal12m
Max. range to one side6m
Max. switching capacity1000W
Min. duty cycle3s
With DALI interfaceNo
With remoteNo
Mounting typeSurface-mounted
Extension inputNo
Nominal voltage230V
SurfaceUntreated
Optimal mounting height2.5m
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessNo
Temperature40°C
Depth75 mm
Animal corridorNo
TransparentNo
Staircase monitoringNo
Creep protection/rear field monitoringNo
NetworkableNo
MaterialPlastic
Material qualityOther
