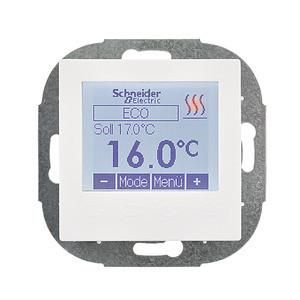

ELSO ELG176294 universal temperature controller programmable with display pure white

In stock
SKU: 435129
€166.18
Into a basketIn the basketGo

Overview

Can be used as a room temperature controller and with optional remote sensor as a room temperature controller with floor monitoring- illuminated, graphic display (illumination permanent / or 10s / or only in comfort mode) - heating mode display on the display (red flame symbol) - OFF function (frost protection at below 5°C) - key lock- automatic summer/winter time change- valve protection function for valves with hot water underfloor heating- measured value correction- selection of the control method (PI-PWM or 2-point) - power reserve 5 days- 55 cm central plate- use without claw fasteningTemperature range:Room temperature 5 30 °CFloor temperature: 10 42 °C

Property Value
Color: bright white
Version: On/Off
Mounting type: Flush-mounted
Protection class (IP): IP30
Height: 70 mm
Width: 70 mm
Depth: 42 mm
Type of power supply: 230 V AC
Connection: three-/four-wire
With receiver: no
Measuring range lower value: 5 °C
Measuring range upper value: 30 °C
External sensor: no
Thermal feedback: parallel
Control characteristics: other
Heating: yes
Number of heating outputs: 1
Cooling: no
Difference value: 0.5 K
Difference adjustable: no
Temperature readable: yes
With noise level display: no
Sensor design: Bimetal
With display: yes
Operation: Button
With drinking water circuit: no
Contact type: Normally open
Max. voltage of contacts: 230 V
Max. contact load: 10 A
Protection class (NEMA): 1
Explosion-proof: no
Diameter: 57 mm
Class of temperature controller: IV

Characteristics

OperationButton
Class of temperature controllerIV
Sensor/sensor designBimetal
Temperature can be readYes
ManufacturerELSO
HANELG176294
GTIN4013984199826
VersionOn off
Width70 mm
Diameter57 mm
Explosion-proofNo
Height70 mm
With displayYes
Mounting typeFlush-mounted
Depth42 mm
