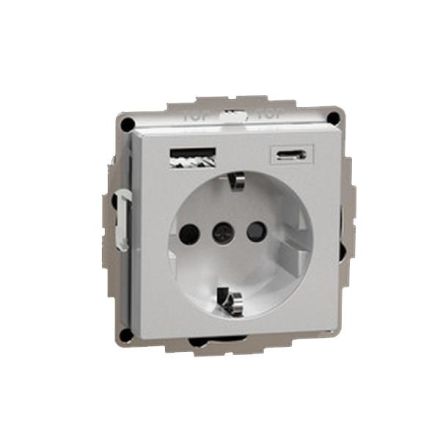

ELSO ELG3653511 M USB 16A/250V TYPE A+C JOY EST socket stainless steel effect

In stock
SKU: 763293
€100.94
Into a basketIn the basketGo

Overview

Socket with integrated increased contact protection in accordance with 0620 Part 1 and USB Type A + C 3 A TP Joy stainless steel effect. Material: thermoplastic. USB charger: nominal voltage: AC 220-250 V, input current: 0.15 A, output current USB Type A: 2.4 A, output current USB Type C: 3.0 A, the output current is divided: 3.0 A, output power: 15 W, power consumption: 60 mW. Operating temperature: 0-40 °C, overvoltage category: III, expected service life: 20,000 hours at full load, socket: 16 A, AC 250 V, terminals: plug-in terminals, stripping length: 11 mm. Connection cross-section: 1.5 - 2.5 mm², (rigid, rigidly stranded and flexible). The product, made of Duroplast, impresses with its scratch resistance and durability and can therefore meet all the demands of daily use. The design of ELSO Joy sets distinctive accents. Lines and curves combine the design interplay of clarity and vitality.

Property Value
RAL number (similar): 1013.0
Number of Units: 1.0
Color: white
Rated voltage: 250.0 V
Rated current: 16.0 A
Lockable: no
With increased contact protection: no
With hinged lid: no
Mounting type: Flush-mounted
Text field/labeling area: no
Frequency: 50.0 to 60.0 Hz
Ejection mechanism: no
Halogen-free: yes
Surge protection: no
Residual current protection: no
Special power supply: without special power supply
Twisted central insert: no
Connection type: other
With fine fuse: no
Fastening type: claw/screw fastening
Material: plastic
Material quality: thermoplastic
Surface protection: other
Surface finish: glossy
Number of modules (with modular construction): 3.0
Number of switchable sockets: 0.0
Device width: 71.0 mm
Device height: 71.0 mm
Device depth: 44.0 mm
Insulated installation: no
With loop-through function: no
With on/off switch: no
With functional lighting: no
With orientation light: no
Transparent: no
With signal lamp: no
Number of phases: 1.0
Antibacterial treatment: no

Characteristics

HABM USB 16A/250V TYPE A+C JOY EST
ManufacturerELSO
HANELG3653511
GTIN3606489906344
LockableNo
Connection typeOther
Antibacterial treatmentNo
Number of Units1.0
Number of modules (for modular construction)3.0
Number of phases1.0
Surface finishGlittering
Ejection mechanismNo
Mounting typeClaw/screw fastening
ColorWhite
Residual current protectionNo
Frequency50.0 to 60.0 Hz
Device width71.0 mm
Device height71.0 mm
Device depth44.0 mm
Halogen freeYes
Insulated installationNo
With loop-through functionNo
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidNo
With signal lampNo
With increased contact protectionNo
Mounting typeFlush-mounted
Nominal voltage250.0V
Rated current16.0A
Surface protectionOther
RAL number (similar)1013.0
Special power supplyWithout special power supply
Text field/label areaNo
TransparentNo
Twisted central insertNo
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionNo
ELSO ELG3653511 M USB 16A/250V TYPE A+C JOY EST socket stainless steel effect
ELSO ELG3653511 M USB 16A/250V TYPE A+C JOY EST socket stainless steel effect
€100.94
Into a basketIn the basketGo
