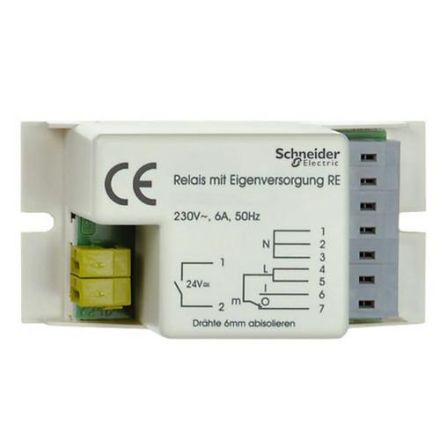

ELSO ELG735530 1-pole 6A/250VAC MEDIOPT Care surge relay

In stock
SKU: 434327
€90.17
Into a basketIn the basketGo

Overview

With a contact for switching the lighting / reading light. Can be used in combination with call button with system socket for bulb button comfort. Has a galvanically isolated power supply. Can be installed in a double switch box or med. Supply unit Supply voltage: 150 250 VAC, 50 Hz Switching capacity: 6 A / 250 VAC Dimensions: 85x42x32 mm (LxWxH)

Property Value
Rated switching current: 6 A
Control voltage 1: 24 V
Control voltage type 1: DC
Function: other
Mounting type: Surface-mounted
Frequency of control voltage 2: 50 Hz
Supply voltage type: AC
Supply voltage: 250 V
Max. incandescent lamp load: 1380 W
Max. Switching current (cos phi = 0.6): 6 A
Manual operation possible: no
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Number of contacts as changeover: 1

Characteristics

Type of voltage of the supply voltageAC
Supply voltage250 V
Manual operation possibleNo
ManufacturerELSO
HANELG735530
GTIN4013984196290
Number of contacts as normally open1
Number of contacts as changeover1
Number of contacts as opener1
FunctionOther
Mounting typeSurface-mounted
Supply voltage250V
ELSO ELG735530 1-pole 6A/250VAC MEDIOPT Care surge relay
