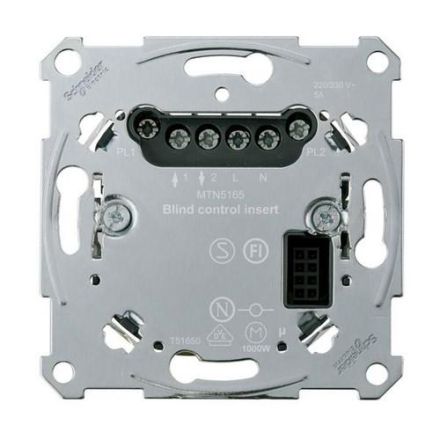

For on-site control of a blind/roller shutter motor with limit switchxx The insert has two relay contacts that are electrically locked against each other, which reliably prevents both relay outputs from being activated at the same time. With claw and screw fastening. With screw terminals. Functions: -The module determines how the function of the insert is used. Slat adjustment for blinds. External control via two PlusLink inputsxx Nominal voltage: AC 220/230 V, 50/60 Hz. Outputs: 2 make contacts (locked against each other). Motor load: 1 motor, max. 1000 VA. Neutral conductor: required (3-conductor system). Connection cross-section: max. 2x2.5 mm. Note: All control functions are included in the module. An insert without a module attached is not functional.
