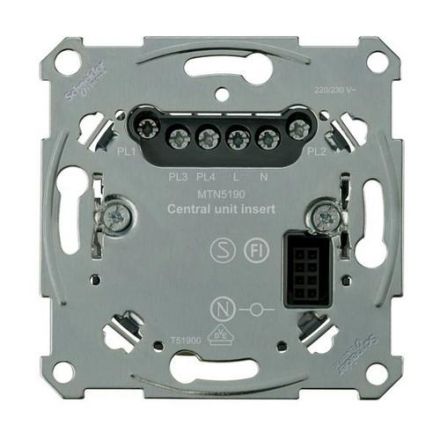

For controlling all devices with a PlusLink input. The device has four PlusLink outputs. For the control function via PlusLink, a separate wire is required in the installation for each receiving device on each PlusLink line. With claw and screw fastening. With screw terminals. Functions: -Global control via four PlusLink outputs. The module determines how the function of the insert is used. Pressing a mechanical button (panic button) on PlusLink output 1 calls up a panic scene on all connected devices in the three PlusLink lines. Nominal voltage: AC 220/230 V, 50/60 Hz. Outputs: 4xPlusLink. Neutral conductor: required (3-conductor system). Connection cross-section: max. 2x2.5 mm. Note: All control functions are included in the module. An insert without a module attached is not functional.
