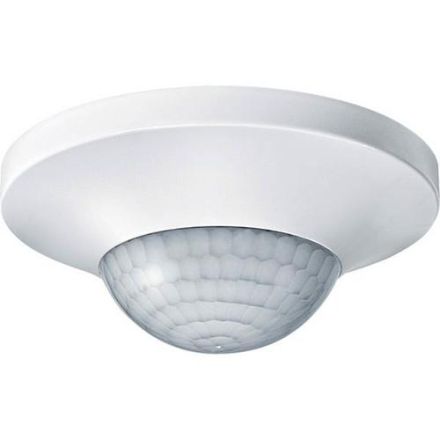

ELSO MTN5510-1219 presence detector ARGUS Master with IR 2-way polar white

Presence detector for ceiling mounting indoors. The sensor module detects moving heat sources (e.g. people) in an adjustable detection range and starts a staircase lighting time. For ohmic, inductive and capacitive loads such as incandescent lamps, energy-saving lamps, low-voltage halogen lighting with conventional transformers, electronic transformers, fluorescent lamps. The sensor module has a light sensor with an adjustable brightness threshold so that the lighting is only switched on below a certain brightness threshold. The presence function enables the sensor module to switch the lighting off even if a person is present if there is sufficient natural light. For installation in a 60 mm flush-mounted box or in the surface-mounted housing available as an accessory. With claw and screw fastening. With screw terminals. Functions: -Switching of two outputs. External control via two PL inputs (sensor module on central unit insert (slave), extension unit plus). Switching. Brightness-dependent staircase light function with channel 1, brightness-independent staircase light function with channel 2. Nominal voltage: AC 220/230 V, 50/60 Hz. Nominal current: max. 10 AX, cos Phi 0.6. The total load of both channels must not exceed 14 A. Outputs: 2x normally open contacts. Max. switching capacity per channel: Incandescent lamps: 2200 W. HV halogen lamps: 2000 W. LV halogen lamps with wound transformer: 500 VA. Electronic transformers: 1050 W. Capacitive load: 10 A, 140 uF. Energy-saving lamps: 100 VA. Motor load: 1000 VA. Neutral conductor: required (3-conductor system). Connection cross-section: max. 2x2.5 mm. Detection angle: 360 degrees. Number of levels: 6. Number of zones: 136. Number of motion sensors: 4. Recommended installation height: 2.5 m. Range: max. radius of 7 m (at an installation height of 2.50 m). Sensitivity: continuously adjustable. Brightness threshold: continuously adjustable from approx. 10 to approx. 1000 lux. Follow-up time: Channel 1: continuously adjustable from approx. 10 s to approx. 30 m
