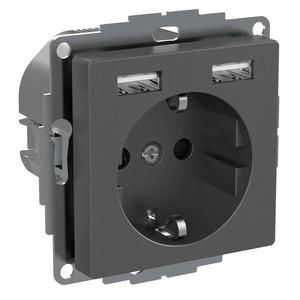

ELSO WDE003179 USB BRS 16A/ DIN49440 EXXACT AG socket

ELSO WDE003179 USB BRS 16A/ DIN49440 EXXACT AG socket

In stock

SKU: 763291

Price on request

€59.93

€0

Overview

Schuko socket with increased contact protection and USB charger. 16 A, AC 250 V, DIN 49440 USB: 2xUSB 2.0 (Type A). Nominal output current: 2.4A (both outputs together). Output power: max12W, own consumption (stand by) 0.06W / for design: Exxact / color: anthracite.

Property	Value
Version:	other
Number of units:	1.0
Color:	gray
Suitable for protection class (IP):	IP20
Nominal voltage:	250.0 V
Nominal current:	16.0 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50.0 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface protection:	untreated
Surface finish:	matt
For 'difficult conditions' according to VDE:	no
Number of modules (with modular construction):	1.5
Number of switchable sockets:	0.0
Device width:	45.0 mm
Device height:	72.0 mm
Device depth:	30.0 mm
Insulated installation:	no
With loop-through function:	yes
With on/off switch:	no
With function lighting:	no
With orientation light:	no
Impact resistance:	IK01
Transparent:	no
Number of active contacts (round):	2.0
Number of active contacts (flat):	0.0
With signal lamp:	no
Number of phases:	1.0
Antibacterial treatment:	no
Metallic color:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABUSB BRS 16A/ DIN49440 EXXACT AG

Manufacturer

HANWDE003179

GTIN3606489429775

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1.0

Number of modules (for modular construction)1.5

Number of phases1.0

Number of active contacts (approx.)2.0

VersionOther

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw attachment

Color

Residual current protectionNo

Frequency50.0Hz

Suitable for protection class (IP)IP20

Device width45.0 mm

Device height72.0 mm

Device depth30.0 mm

Halogen freeYes

IFTTT support availableNo

Insulated installationNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With signal lampNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250.0V

Rated current16.0A

Surface protectionUntreated

Impact resistanceIK01

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
