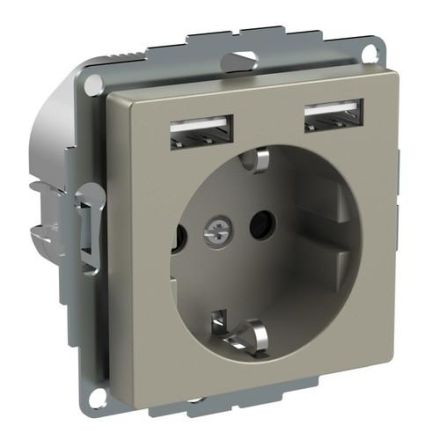

ELSO WDE004179 USB BRS 16A/ DIN49440 EXXACT MET socket

ELSO WDE004179 USB BRS 16A/ DIN49440 EXXACT MET socket

In stock

SKU: 763292

Price on request

€64.27

€0

Overview

USB charger + Schuko socket 2.4A 16A Exxact metal effect. Nominal voltage: AC 220-240 V, connection cross-section: 1.5 - 2.5 qmm, USB charger: 2 outputs type A, USB output voltage: DC 5 V ± 5%, USB output current: 0.01-2.4 A, (for both outputs together), USB output power: max. 12 W.

Property	Value
Version:	other
RAL number (similar):	9003.0
Number of units:	1.0
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250.0 V
Nominal current:	16.0 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50.0 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Printing/marking:	other
Connection type:	Plug-in terminal
With fine fuse:	no
Fastening type:	Claw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface protection:	untreated
Surface finish:	matt
Rated residual current:	0.0 mA
For 'difficult conditions' according to VDE:	no
Number of modules (with modular construction):	1.5
Number of switchable sockets:	0.0
Device width:	45.0 mm
Device height:	72.0 mm
Device depth:	30.0 mm
Insulated installation:	no
With loop-through function:	yes
With On/off switch:	no
With function lighting:	no
With orientation light:	no
Impact resistance:	IK03
Transparent:	no
Number of active contacts (round):	2.0
Number of active contacts (flat):	0.0
With signal lamp:	no
Number of Phases:	1.0
Antibacterial treatment:	no
Min. depth of the device box:	32.0 mm
Metallic color:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABUSB BRS 16A/ DIN49440 EXXACT MET

Manufacturer

HANWDE004179

GTIN3606489429782

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1.0

Number of modules (for modular construction)1.5

Number of phases1.0

Number of active contacts (approx.)2.0

Printing/markingOther

VersionOther

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw attachment

Rated residual current0.0mA

Color

Residual current protectionNo

Frequency50.0Hz

Suitable for protection class (IP)IP20

Device width45.0 mm

Device height72.0 mm

Device depth30.0 mm

Halogen freeYes

IFTTT support availableNo

Insulated installationNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Min. depth of the device box32.0 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With signal lampNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250.0V

Rated current16.0A

Surface protectionUntreated

RAL number (similar)9003.0

Impact resistanceIK03

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
