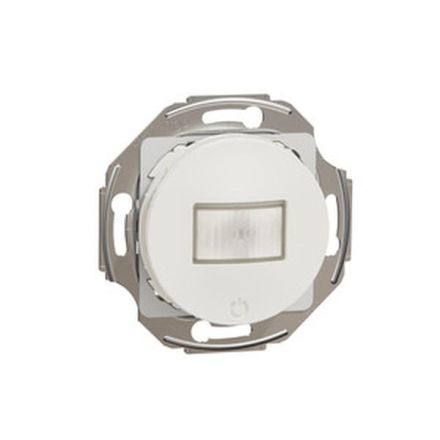

ELSO WDE011652 160 degrees 3-wire 230VAC white motion detector

ELSO WDE011652 160 degrees 3-wire 230VAC white motion detector

In stock

SKU: 832825

Price on request

€99.91

€0

Overview

Motion detector with central plate 160 degrees / 3-wire / 230VAC / 10A ON/OFF switch white RENOVA. Technical data: Rated voltage: AC 220/230 V / 50/60 Hz, Rated current: max 10A X cos 0.6, Output: 1 normally open contact, Max switching capacity: LED: 200W, Incandescent lamps: 2200W, HV halogen lamps: 2000W, NV halogen lamps with wound transformer: 500VA. Electronic transformer: 1050 VA, Capacitive load: 10A, 140 F, Energy saving lamps: 200W, Motor load: 1000VA, Neutral conductor: required (3-wire), Range: approx. 8m, Follow-up time: 1s-30min, Brightness threshold: 5-500lux. to be supplemented with frames from the RENOVA product family.

Property	Value
Depth:	44.0 mm
Width:	71.0 mm
Height:	71.0 mm
Design:	Motion detector
Voltage type:	AC
Protection class (IP):	IP21
Max. Switching capacity:	2200.0 W
Min. duty cycle:	1.0 s
Max. duty cycle:	30.0 min
Max. inrush current:	10.0 A
Max. range to one side:	6.0 m
Max. presence area:	86.0 m²
Max. Frontal range:	8.0 m
Horizontal detection angle:	160.0 °
Color:	white
RAL number (similar):	9010.0
Material:	Plastic
Mounting height:	1.0 m
Mounting type:	Flush-mounted
Response brightness:	5.0 to 500.0 lx
Response brightness adjustable:	yes
Scan angle:	160.0 °
Creep-under protection:	no
Temperature:	5.0 to 35.0 °C
Response sensitivity adjustable:	no
Sensor type:	passive infrared
Surface finish:	glossy
Surface protection:	untreated
Material quality:	Thermoplastic
Number of switching zones:	13.0
Switch-off delay:	1800.0 s
Switch-on delay:	0.0 s
Frequency:	50.0 Hz
Sensor swivel range, vertical:	0.0 °
Sensor swivel range, horizontal:	0.0 °
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Automatic stair lighting:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	yes
Forced switching on:	yes
Suitable for ceiling mounting:	no
Connection type:	screw terminal
Antibacterial treatment:	no
Installation width:	55.0 mm
Installation depth:	29.0 mm
Installation length:	55.0 mm
Installation diameter:	55.0 mm
Min. depth of the device box:	46.0 mm

Characteristics

Bridging switchNo

With signal unitYes

Number of switching zones13.0

Response brightness5.0 to 500.0 lx

Forced shutdownYes

Max. inrush current10.0 A

Scanning angle160.0 °

Forced switching onYes

Max. presence range86.0 m²

HABWDE011652 160 degrees 3-wire 230VAC white

Manufacturer

HANWDE011652

GTIN3606481909473

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishGlittering

Width71.0 mm

Installation width55.0 mm

Installation diameter55.0 mm

Installation length55.0 mm

Installation depth29.0 mm

Detection angle horizontal160.0°

Color

Remote controllableNo

Frequency50.0Hz

Suitable for C-loadYes

Suitable for ceiling mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeNo

Height71.0 mm

Constant light controlNo

Max. duty cycle30.0 min

Max. range frontal8.0m

Max. range to one side6.0m

Max. switching capacity2200.0W

Min. duty cycle1.0s

Min. depth of the device box46.0 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputYes

Surface protectionUntreated

RAL number (similar)9010.0

IP protection)IP21

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature5.0 to 35.0 °C

Depth44.0 mm

Animal corridorNo

TransparentNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
