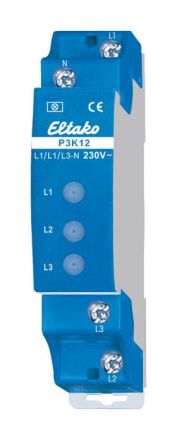

Eltako 24000899 monitoring module P3K12-230V

In stock

SKU: 187705

Price on request

€29.27

€0

Overview

Phase control, standby loss only 0.06 watts per path. Modular device for mounting on DIN-EN 60715 TH35 mounting rail. 1 division unit = 18mm wide, 58mm deep. For optical monitoring of 1 to 3 230V external conductors. Display with three red LEDs.

Property	Value
Design of the electrical connection:	Screw connection
Type of voltage for actuation:	AC
Width:	18 mm
Height:	58 mm
Depth:	58 mm
Overvoltage detection function:	no
Rated control supply voltage Us at AC 50 Hz:	230 V
With removable terminals:	no
Phase sequence monitoring function:	no
Phase failure detection function:	yes
Undervoltage detection function:	no
Asymmetry detection function:	no
Voltage measuring range:	230 V
