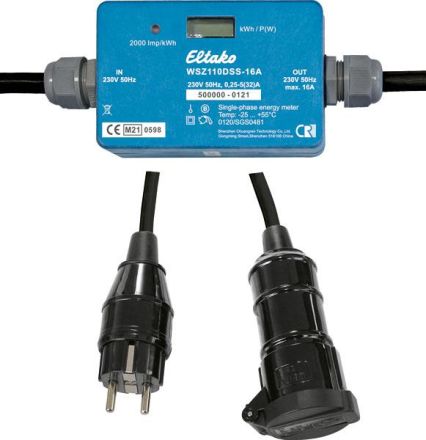

Mobile AC meter with safety plug and safety coupling. Suitable for indoor and outdoor use. Maximum current 16A. Standby loss only 0.4 watts. Housing dimensions 110x70x35mm, connecting cable 1.5m (incl. plug and coupling). Accuracy class B (1%). This mobile AC meter measures the active energy based on the current flowing between the input and the output. The internal consumption of only a maximum of 0.4 watts of active power is not measured and not displayed. Every 30 seconds the display switches for 5 seconds from the accumulated active energy in kWh to the current consumption in watts. The starting current is 20mA. The display can only be read when the power is on. However, the consumption is stored non-volatilely and is immediately displayed again after a power failure. The digital display has 7 digits. Two decimal places are displayed up to 99999.99kWh. From 100,000.0kWh only one. The power consumption is displayed with an LED that flashes 2000 times per kWh. Technical data: Operating voltage: 230V, 50Hz, extended range -20%/+15%. Rated current: 16A. Meter current range: Reference current Iref (limit current Imax): 0.25-5 (32)A. Own consumption of active power: 0.4 W. Display: LC display 7 digits, of which 1 or 2 decimal places. Accuracy class for ±1%: B. Starting current according to accuracy class B: 20mA. Operating temperature: -25/+55°C. Protection class housing: lP54, plug and coupling: IP44. Cable cross-section: 3x2.5mm². Cable length including plug and coupling: 1.50m. Mechanical ambient conditions: Class M1. Electromagnetic environment: Class E2.
