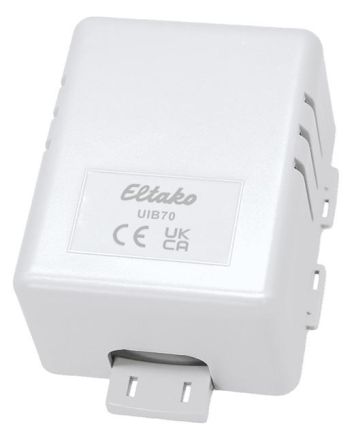

Eltako 30000012 UIB70-rw pure white installation box

In stock
SKU: 919264
€9.41
Into a basketIn the basketGo

Overview

LxWxH: 70x56x37mm. For installation of one device from series 61, 62, 64, 81 and 91. Base plate for wall mounting with 4 holes for screw fastening, grid dimensions 56x40mm. Housing for snapping onto the base plate, with ventilation slots, cable entry and cable strain relief with standard cable ties up to 2.6mm. Protection class IP20.

Property Value
Width: 56 mm
Length: 70 mm
Depth: 37 mm
Color: white
Protection class (IP): IP20
Number of entries: 1
Halogen-free: yes
Equipment: other
Mounting type: Wall/ceiling mounting
Material: Plastic
Cover fastening: snap-on
Sealable: no
Can be arranged in rows: no
Shape: rectangular
Type of housing feedthrough: other
Explosion-tested version: no
Potting compound included: no
Potable: no
Installation under water: no
Transparent cover: no
Installation in the ground: no
With shielding: no
Introduction from the rear: no
Weatherproof: no
Cover design: Mounting cover

Characteristics

Explosion-tested versionNo
HABUIB70-rw pure white
ManufacturerELTAKO
HAN30000012
GTIN4010312909454
Cover designMounting cover
Width56 mm
ColorWhite
ShapeRectangular
Halogen freeYes
Length70 mm
Mounting typeWall/ceiling mounting
IP protection)IP20
Depth37 mm
MaterialPlastic
