Eltako 30000023 BPS-ES blister pack wireless button

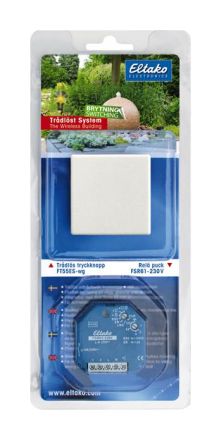

Blister pack switching contains a battery- and cable-free radio button FT55ES in pure white glossy and a switching actuator FSR61-230V with impulse switch function. FT55ES-wg: Radio button wg pure white glossy, 80x80mm outside, frame inner dimensions 55x55mm, 15mm high. Generates the energy for radio telegrams itself when the button is pressed, therefore no connection cable and no standby loss. The scope of delivery includes the frame R, a rocker W55, a mounting frame BRF, the holding plate HP, the radio module and an adhesive film. Radio buttons with one rocker can send two evaluable signals: press the rocker at the top and press the rocker at the bottom. Radio buttons with double rockers can send four evaluable signals: press two rockers at the top and two at the bottom. The holding plate can be screwed onto a flat surface or stuck to the wall, glass or furniture with the enclosed adhesive film. The sleeves in the box are used for screw fastening over a 55 mm switch box. The FTB radio button lighting can then also be snapped onto the mounting plate from behind. The double rocker is snapped onto the radio module at the factory. If this is to be replaced with the large rocker, then pull the rocker halves forwards and do not bend them towards the middle. Then snap the large rocker on so that its markings 0 and I on the back match the radio module. When gluing, first glue the mounting plate set with frame and fastening frame - with the notches at the top and bottom. Then snap the radio module set with rocker - marking 0 on the back always at the top - into place. Before screwing on, remove the frame with fastening frame from the mounting plate. To do this, press the notches on the mounting plate outwards. Then screw on the mounting plate - with the notches at the top and bottom - snap on the frame with the fastening frame and snap in the radio module set with rocker - marking 0 on the back always at the top. For screw fastening we recommend sheet metal countersunk screws 2.9x25mm, DIN 7982 C. Both with dowels 5x25mm and on 55mm switch boxes. The Eltako frame can be exchanged for a frame with the internal dimensions 55x55mm from another manufacturer at any time during installation. FSR61-230V: 1 normally open contact, potential-free 10A/250V AC, incandescent lamps 2000 watts, off-delay with switch-off warning and button permanent light can be switched on. Encrypted radio, bidirectional radio and repeater function can be switched on. Stand-by loss only 0.8 watts. For flush mounting. 45mm long, 45mm wide, 33mm deep. Local supply and control voltage 230V. If the supply voltage fails, the switching state is retained. When the supply voltage returns, the switch is switched off in a defined manner. After installation, wait for the short automatic synchronization before connecting the switched consumer to the mains. In addition to the radio control input via an internal antenna, this radio actuator can also be controlled locally with a conventional control button that may be mounted in front of it. A glow lamp current is not permitted. From production week 11/14, encrypted sensors can be taught in. Bidirectional radio and/or a repeater function can be switched on. Every change in status and incoming central control telegrams are then confirmed with a radio telegram. This radio telegram can be taught in to other actuators, the GFVS software and universal displays. Scene control: Using one of the four control signals from a button with a double rocker that has been taught in as a scene button, several FSR61s can be switched on or off for a scene. With the upper rotary switch in the LRN position, up to 35 radio buttons can be assigned, one or more of which are central controls
