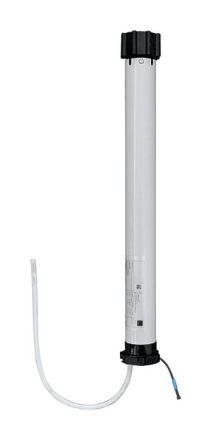

Eltako 30000049 FRM60M20 SW60/20 NM wireless tubular motor

In stock
SKU: 710720
€252.57
Into a basketIn the basketGo

Overview

Radio-controlled tubular motor 230V/184W for steel shaft SW60, torque 20Nm, speed 14/min, with adapter set, bearings and whisper mode. The radio-controlled tubular motor has a total length of 526mm. It has a curtain protection and a noiseless soft brake. Intelligent force measurement. Curtain protection up/down with free travel (torque shutdown). Adjustable relief. End positions adjustable via assembly cable. Noiseless soft brake. Protection class IP44. Long running time of 10 minutes. Drive technology proven millions of times. Extremely quiet. Relief at the end positions. Curtain protection function. Whisper mode (can be activated by long pressing of the button). Slow lowering of the slats. Soft start/soft stop. Automatic commands in whisper mode. Long service life (due to less heat development). Soft brake (contactless, wear-free).

Property Value
Torque: 20 Nm
Outer diameter: 50 mm
Octagonal steel shaft SW 40: no
Octagonal steel shaft SW 50: no
Octagonal steel shaft SW 60: yes
Octagonal steel shaft SW 70: no
For roller shutters: yes
For awnings: yes
Type of limit switch: electronic
Electronic travel path monitoring: yes
Electronic obstacle detection: yes
With adapter for shaft: yes
Length: 526 mm

Characteristics

HABFRM60M20 SW60/20 NM
ManufacturerELTAKO
HAN30000049
GTIN4010312321256
Outer diameter50 mm
Length526 mm
