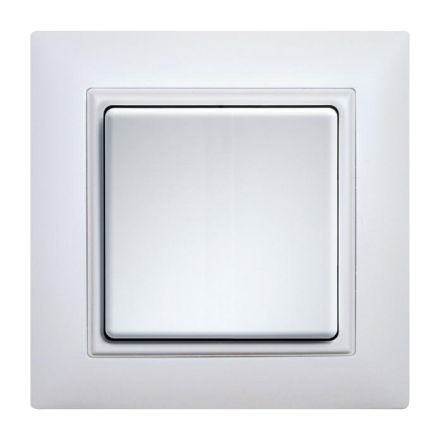

White wireless button for frame internal dimensions 60x60mm, 15mm high. Generates the energy for wireless telegrams even when the button is pressed, so no connection cable and no standby loss. With rocker and double rocker. Also for Swiss cover frames from ABB Normelec and Hager. The scope of delivery includes a large rocker, a double rocker, an intermediate frame (all the same color), the mounting plate, the wireless module and an adhesive film. Wireless buttons with a rocker can send two evaluable signals: press the top rocker and the bottom rocker. Wireless buttons with a double rocker can send four evaluable signals: press two rockers at the top and two at the bottom. The mounting plate can be screwed onto a flat surface or stuck to the wall, glass or furniture using the adhesive film provided. The sleeves in the box are used for screw fastening over a 55mm switch box. The double rocker is snapped onto the wireless module at the factory. If you want to replace this with the large rocker, pull the rocker halves forwards and do not bend them towards the middle. Then snap the large rocker on so that the markings 0 and I on the back match the radio module. When gluing, first glue the holding plate with frame and intermediate frame, using the notches at the top and bottom. Then snap the radio module set with rocker into place, with the 0 marking on the back always at the top. Before screwing it on, remove the intermediate frame from the holding plate. To do this, press the notches on the holding plate outwards. Then screw on the holding plate, using the notches at the top and bottom, snap the frame with the intermediate frame onto it and snap the radio module set with rocker into place, with the 0 marking on the back always at the top. For screw fastening, we recommend stainless steel countersunk screws 2, 9x25mm, DIN 7982 C. Both with dowels 5x25mm and on 55mm switch boxes. The radio module contained in the radio button can be taught in encrypted form in all encryptable actuators of the 61 and 71 series, as well as in the FAM14, according to the operating instructions. The radio button encryption rocker FTVW is required for this. Encryptable actuators have the key pictogram.
