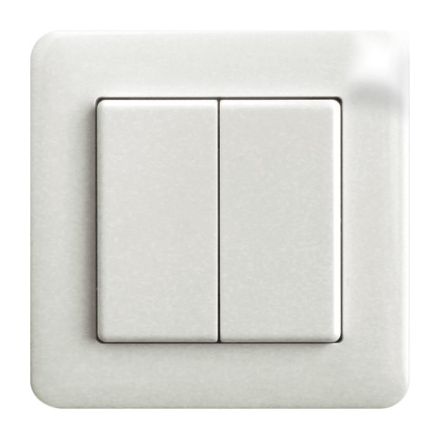

Wireless 4-channel button 55x55mm Sweden, exxact white. Generates the energy for radio telegrams even when the button is pressed, so no connection cable and no standby loss. With rocker and double rocker. The scope of delivery includes a rocker, a mounting frame, a holding plate, the radio module and an adhesive film. Radio buttons with a rocker can send two evaluable signals: press the top rocker and press the bottom rocker. Radio buttons with double rockers can send four evaluable signals: press two rockers each at the top and bottom. The holding plate can be screwed onto a flat surface or stuck to the wall, glass or furniture using the adhesive film provided. The sleeves in the box are used for screw fastening over a 55mm switch box. The double rocker is snapped onto the radio module at the factory. If this is to be replaced with the large rocker, then pull the rocker halves forwards and do not bend them towards the middle. Then snap the large rocker on so that its markings 0 and I on the back match the radio module. When gluing, first glue the set of holding plate with frame and fastening frame on, with the notches at the top and bottom. Then snap the set of radio module with rocker, with the 0 marking on the back always at the top, into place. Before screwing on, remove the frame with fastening frame from the holding plate. To do this, press the notches on the holding plate outwards. Then screw on the holding plate, with the notches at the top and bottom, snap on the frame with the fastening frame and snap in the set of radio module with rocker, with the 0 marking on the back always at the top. For screw fastening, we recommend sheet metal countersunk screws 2, 9x25mm, DIN 7982 C. Both with dowels 5x25mm and on 55mm switch boxes. The radio module included in the radio button can be encrypted and taught in to all encryptable actuators of the 61 series and to the FAM14. The FTVW radio button encryption rocker is required for this purpose. Encryptable actuators have the key pictogram.
