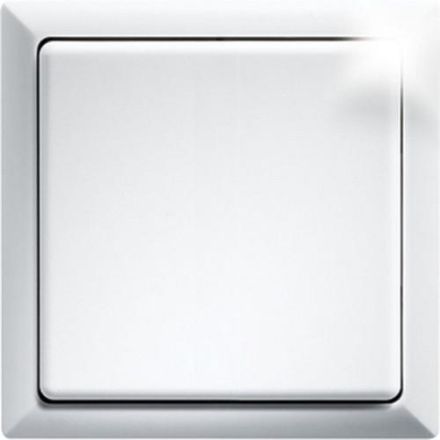

Surface radio button, 80x80mm outside, frame inner dimensions 63x63mm, 15mm high. Generates the energy for radio telegrams even when the button is pressed, therefore no connection cable and no standby loss. With rocker and double rocker. Smart home sensor. The scope of delivery includes the R1F frame, a surface rocker WF, a surface double rocker DWF (all the same color), a mounting frame BRF, the holding plate HP, the radio module and an adhesive film. Radio buttons with a rocker can send two evaluable signals: press the top rocker and the bottom rocker. Radio buttons with a double rocker can send four evaluable signals: press two rockers each at the top and bottom. The holding plate can be screwed onto a flat surface or stuck to the wall, glass or furniture with the enclosed adhesive film. The sleeves in the box are used for screw fastening over a 55mm switch box. The double rocker is snapped onto the radio module at the factory. If you want to replace this with the large rocker, then pull the rocker halves forwards and do not bend them towards the middle. Then snap the large rocker on so that the markings 0 and I on the back match the radio module. When gluing, first glue the holding plate set with frame and fastening frame - with the notches at the top and bottom. Then snap the radio module set with rocker - with the 0 marking on the back always at the top - into place. Before screwing on, remove the frame with the fastening frame from the holding plate. To do this, press the notches on the holding plate outwards. Then screw on the holding plate - with the notches at the top and bottom -, snap on the frame with the fastening frame and snap in the radio module set with rocker - with the 0 marking on the back always at the top. For screw fastening, we recommend stainless steel countersunk screws 2, 9x25mm, DIN 7982 C. Both with dowels 5x25mm and on 55mm switch boxes. The Eltako frame can be replaced at any time during installation with a frame with internal dimensions of 63x63mm from another manufacturer. The radio module contained in the radio button can be encrypted and taught into all encryptable actuators of the 61 and 71 series, as well as into the FAM14, in accordance with the operating instructions. The radio button encryption rocker FTVW from page 7-21 is required for this. Encryptable actuators have the key pictogram.
