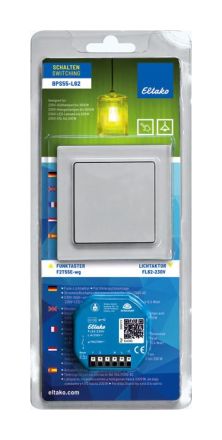

Blister pack switching with radio button F2T55E-wg and light actuator FL62-230V. Smart home sensor and smart home actuator. F2T55E-wg: radio 2-channel button in E-Design55, 80x80mm outside, frame inner dimensions 55x55mm, 15 mm high. Generates the energy for radio telegrams even when the button is pressed, therefore no connection cable and no standby loss. With rocker. Smart home sensor. Radio buttons with a rocker can send two evaluable signals: press the rocker up and press the rocker down. The mounting plate can be screwed onto a flat surface or stuck to the wall, glass or furniture with the included adhesive film. The sleeves in the box are used for screw fastening over a 55mm switch box. FL62-230V: radio light actuator 10A/250V AC. Impulse switch with 1 normally open contact, potential-free. 230V LED lamps and ESL up to 200W, 230V incandescent and halogen lamps 1000W. For built-in installation. 49x51mm, 20mm deep. Standby loss only 0.4 watts. The connection terminals are plug-in terminals for conductor cross-sections from 0.2mm² to 2.5mm². Up to 32 wireless universal buttons, wireless direction buttons, wireless central control buttons and motion sensors can be taught in using the convenient tap technology. Bidirectional radio can be activated. Distance between control connections/contact 6mm. Local supply, switching and control voltage 230V. If the supply voltage fails, the switch position is retained. When the supply voltage returns, it is switched off in a defined manner. After installation, wait for the automatic short synchronization before connecting the switched consumer to the mains. In addition to the radio control input via an internal antenna, this radio actuator can also be controlled locally with a conventional 230V control button that may be mounted in front of it. A glow lamp current is not permitted.
