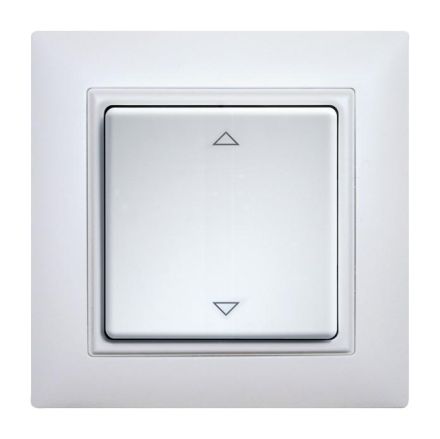

Wireless 4-channel button, white, for frame internal dimensions 60x60mm, 15mm high. Laser engraved, an arrow at the top (up) and at the bottom (down). Generates the energy for radio telegrams even when the button is pressed, so no connection cable and no standby loss. Also for Swiss cover frames from ABB Normelec and Hager. The scope of delivery includes a large rocker, a double rocker, an intermediate frame (all the same color), the mounting plate, the radio module and an adhesive film. Radio buttons with one rocker can send two evaluable signals: press the top rocker and the bottom rocker. Radio buttons with a double rocker can send four evaluable signals: press two rockers at the top and two at the bottom. The mounting plate can be screwed onto a flat surface or stuck to the wall, glass or furniture using the adhesive film provided. The sleeves in the box are used for screw fastening over a 55mm switch box. The double rocker is snapped onto the radio module at the factory.
