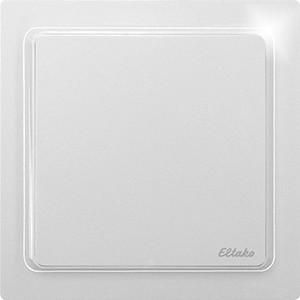

Bus temperature sensor for connection to the RS485 bus gateway BGW14. For individual installation or installation in the E-Design55 switch system. 80x80mm, 17mm high. Installation depth 33mm. Data transmission and power supply with a 12V DC switching power supply are carried out via the 4-wire bus. Stand-by loss only 0.1 watt.
| Property | Value |
| Color: | other |
| Mounting type: | Surface-mounted |
| Composition: | Base element with complete housing |
| Other bus systems: | other |
| Material quality: | Thermoplastic |
| Material: | Plastic |
| Protection class (IP): | other |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 9010 |
| KNX bus system: | no |
| Radio bus system: | no |
| Powernet bus system: | no |
| LON bus system: | no |
| With theft/dismantling protection: | no |
| With display: | no |
| With LED display: | no |
| With on-site operation: | no |
| Manual setpoint adjustment: | no |
| Presence button: | no |
| Parallel operation possible: | yes |
| With bus connection: | yes |
| Transparent: | no |
| Bus system KNX radio: | no |
| Bidirectional radio: | no |
| Power consumption in standby mode (solstandby): | 0.1 W |
| Min. depth of the device box: | 50 mm |
