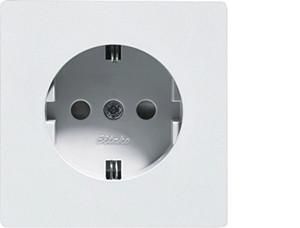

Eltako 30056893 DSS55EOR-pg E-Design55 polar white glossy socket

Eltako 30056893 DSS55EOR-pg E-Design55 polar white glossy socket

In stock

SKU: 919285

Price on request

€6.04

€0

Overview

German protective contact socket DSS with socket top in E-Design55, 80x80mm outside, frame inside dimensions 55x55mm. With increased contact protection. The socket bottom with VDE symbol has plug-in terminals. -OR types without individual frames included in delivery for installation in multiple or third-party frames.

Property	Value
Version:	SCHUKO
RAL number (similar):	9010
Number of units:	1
Color:	other
Rated voltage:	230 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Print/marking:	other
Connection type:	screw terminal
With fine fuse:	no
Mounting type:	Mounting with screw
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Device width:	55 mm
Device height:	55 mm
Device depth:	30 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. depth of device box:	30 mm

Characteristics

HABDSS55EOR-pg E-Design55 polar white gloss

Manufacturer

HAN30056893

GTIN4010312327791

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Printing/markingOther

VersionSCHUKO

Surface finishGlittering

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Frequency50Hz

Device width55 mm

Device height55 mm

Device depth30 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box30 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage230V

Rated current16A

SurfaceUntreated

RAL number (similar)9010

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
