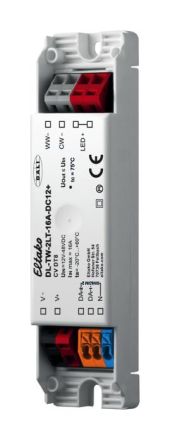

DALI LED dimmer for independent control of brightness and color temperature. For DIN-EN 60715 TH35 mounting rail. 98x17.5x56mm. Protection class IP20. Standby loss only 0.12 watts. Device with 2 DALI tunable white LED dimmers. Suitable for controlling constant voltage LED modules for 12V to 48V. 2 DALI addresses (Device Type 8, Color Type Tc). Each DT8-Tc address enables independent control of brightness and color temperature. Dimming range 1%-100%. PWM frequency 488Hz. Supply voltage from 12V to 48V DC. Connection current of 16A. The maximum connection current can be distributed as desired. High efficiency >98%. Configuration via PC software DALI-Cockpit and DALI-USB interface. Settings: The device contains 2 Tunable White LED dimmers. Each one uses a DALI address to control it. The addresses support DT8 commands (colour-type Tc), which means that brightness and colour temperature can be controlled independently of one another.
