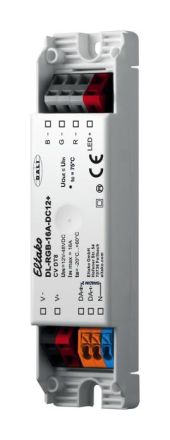

DALI LED dimmer with RGB color control for the false ceiling. 120x30x22mm. Protection class IP20. Standby loss only 0.12 watts. Suitable for controlling constant voltage LED modules (CV) with operating voltages from 12V to 48V. DT8 operating mode: one DALI address for controlling brightness and color (DALI DT8, type RGBWAF). Color&Dim operating mode: Control via 2 DALI addresses, one for adjusting the brightness and one for adjusting the color. SwitchDim2: Operation via 2 switching inputs enables control of brightness and color without DALI. Dimming range 0.1%-100%. Switchable PWM frequency (122Hz/244Hz/488Hz/976Hz). Supply voltage 12 V to 48 V DC (corresponding to the operating voltage of the LED modules). Connection current 16A. The maximum connection current can be distributed among the channels as desired. Low standby losses. High efficiency. Configuration via PC software DALI-Cockpit and DALI-USB interface. Operating modes: The device has several operating modes: DT8 (delivery state): In this operating mode, brightness and color are controlled via a DALI address (Device Type 8). Alternatively, operation can also be carried out via two button inputs (SwitchDim2): SwD1: Brightness. Short button press: On/Off. Long button press: Dimming. SwD2: Color. Color&Dim: This operating mode is used to control RGB lights. Control is via 2 DALI addresses, with one address influencing the brightness and the other the channel allocation (e.g. color). The Color&Dim mode enables the color to be adjusted without affecting the brightness and vice versa. The adjustment is made using DALI standard commands such as Dim Up/Down and can therefore be carried out using all common controls and gateways (e.g. KNX). This control option offers an alternative to the DT8-RGBWAF mode. Can be operated via DALI or SwitchDim2: DALI address 1, SwD1: brightness. DALI address 2, SwD2: color.
