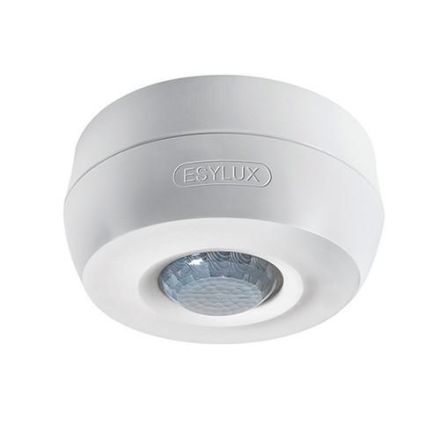

EsyLux EB10431272 PD 360i/8 BASIC IP54 presence detector

EsyLux EB10431272 PD 360i/8 BASIC IP54 presence detector

In stock

SKU: 944938

Price on request

€84.23

€0

Overview

Ceiling presence detector with 360° detection range. Automatic light control depending on presence and daylight. Range of up to 8 m in diameter with recommended installation height of 3 m. Protection class: IP54. 10A high-performance relay. Gentle zero-crossing switching: extends the service life of relays and lamps in electronic ballasts (e.g. fluorescent lamps, LEDs). Factory settings for immediate operational readiness. Additional button input. Can be remotely controlled. Extension of the detection range through parallel connection.

Property	Value
Height:	51 mm
Design:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP54
Max. Switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	4.0 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	15 s
Max. Duty cycle:	30 min
Creep-under protection/rear field monitoring:	yes
Temperature:	0 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence area:	12.58 m²
Max. frontal range:	3.0 m
Max. Inrush current:	78 A
Sensor type:	passive infrared
Optimal installation height:	3.0 m
Surface finish:	matt
Material quality:	thermoplastic
Detection field diameter on floor:	8 m
Number of switching zones:	1
Switch-off delay:	300 s
Switch-on delay:	30 s
Horizontal detection angle:	180 to 360 °
Frequency:	50 to 60 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Bypass switch:	no
Suitable for wireless transmission:	yes
Remote control:	yes
With Signal unit:	yes
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	screw terminal
Antibacterial treatment:	no
Diameter:	102 mm

Characteristics

Bridging switchNo

With signal unitYes

Number of switching zones1

Response brightness5 to 2000 lx

Forced shutdownYes

Max. inrush current78 A

Scanning angle360 °

Forced switching onYes

Max. presence range12.58 m²

HABPD 360i/8 BASIC IP54

Manufacturer

HANEB10431272

GTIN4015120431272

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionPresence detector

Surface finishFrosted

Diameter102 mm

Detection field diameter on floor8m

Detection angle horizontal180 to 360 °

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionYes

HVAC controlNo

Halogen freeYes

Height51 mm

Constant light controlNo

Max. duty cycle30 min

Max. range frontal3.0m

Max. range to one side4.0m

Max. switching capacity2300W

Min. duty cycle15s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Nominal voltage230V

Optimal mounting height3.0m

RAL number (similar)9010

IP protection)IP54

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature0 to 50 °C

Animal corridorNo

TransparentNo

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
