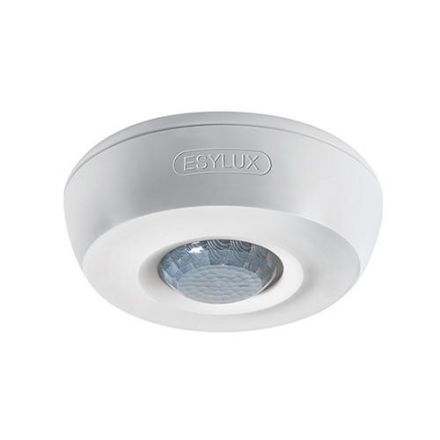

EsyLux EB10431357 PD 360I/8 Basic Elc presence detector

In stock
SKU: 945073
€51.30
Into a basketIn the basketGo

Overview

Presence detector with 360° detection area for ceiling mounting. Range of up to 8 m in diameter with a recommended mounting height of 3 m (maximum mounting height 5 m). Automatic light control (channels 1-4) to a constant brightness level depending on presence and daylight (ESYLUX Light Control interface). Stored factory program for immediate operational readiness. Simple programming via remote control with 'blue mode' technology or via setting elements. Detector can be used as a fully or semi-automatic device. Reduction to 10-50% of the light output after the run-on time has elapsed as an orientation light for corridors and passageways. Integrated switch-off warning. Standard version as a surface-mounted device. Ceiling recessed installation with accessories.

PropertyValue
Height:33 mm
Version:Presence detector
Color:white
Nominal voltage:22 V
RAL number (similar):9010
Material:Plastic
Mounting type:Flush-mounted
Response brightness:5 to 2000 lx
Protection class (IP):IP20
Voltage type:DC
Max. range to one side:4.0 m
Scan angle:360 °
Suitable for wall mounting:no
Min. duty cycle:30 s
Max. duty cycle:30 min
Creep-by protection/rear field monitoring:yes
Temperature:0 to 50 °C
Adjustable response brightness:yes
Max. Presence area:12.58 m²
Max. Frontal range:3.0 m
Sensor type:passive infrared
Optimal installation height:3.0 m
Surface finish:matt
Material quality:thermoplastic
Detection field diameter on floor:8 m
Horizontal detection angle:180 to 360 °
Halogen-free:yes
Constant light control:yes
HVAC control:no
Animal corridor:no
Networkable:yes
Bypass switch:no
Suitable for wireless transmission:no
Remote controllable:yes
Alarm function:no
Dimming function with dimming insert:no
Transparent:no
With remote control:no
Suitable for C load:no
With DALI interface:no
Suitable for ceiling mounting:yes
Connection type:plug-in terminal
Antibacterial treatment:no
Diameter:101 mm

Characteristics

Bridging switchNo
Response brightness5 to 2000 lx
Scanning angle360 °
Max. presence range12.58 m²
HABPD 360I/8 Basic Elc
ManufacturerESYLUX
HANEB10431357
GTIN4015120431357
Dimming function with dimming insertNo
Alarm functionNo
Connection typePlug-in terminal
Response brightness adjustableYes
Antibacterial treatmentNo
VersionPresence detector
Surface finishFrosted
Diameter101 mm
Detection field diameter on floor8m
Detection angle horizontal180 to 360 °
ColorWhite
Remote controllableYes
Suitable for C-loadNo
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Height33 mm
Constant light controlYes
Max. duty cycle30 min
Max. range frontal3.0m
Max. range to one side4.0m
Min. duty cycle30s
With DALI interfaceNo
With remoteNo
Mounting typeFlush-mounted
Nominal voltage22V
Optimal mounting height3.0m
RAL number (similar)9010
IP protection)IP20
Sensor typePassive infrared
Voltage typeDC
Temperature0 to 50 °C
Animal corridorNo
TransparentNo
Creep protection/rear field monitoringYes
NetworkableYes
MaterialPlastic
Material qualityThermoplastic
