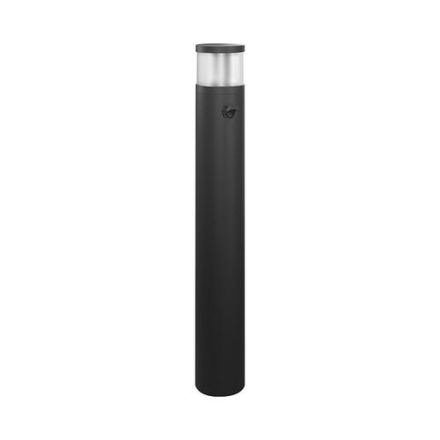

EsyLux EL10821240 ALVA BL 700/100 OP 360° 840 MD IR DALI LED bollard light

EsyLux EL10821240 ALVA BL 700/100 OP 360° 840 MD IR DALI LED bollard light

In stock

SKU: 944988

Price on request

€337.85

€0

Overview

LED DALI bollard light made of high-quality aluminum. Dirt-repellent thanks to powder coating with lotus effect. Light head: opal satin. Light emission: 360°. Electronic ballast (DALI) integrated, installation without additional accessories. DALI interface for 2-pin DALI control cable. High-quality housing, die-cast aluminum, powder-coated anthracite, similar to RAL 7024. DALI motion detector - orientation light - twilight switch - setting options via infrared remote control (accessory) - parallel connection (master / master). Installation type: mounting plate for screwing onto a foundation, optionally via ground anchor (accessory). Color temperature 4000 K.

Property	Value
Cover material:	Opal plastic
Impact resistance:	IK09
With light source:	yes
Protection class:	I
Light source:	LED not replaceable
Nominal voltage:	200 to 240 V
Suitable for number of light sources:	1
Diameter:	100 mm
Socket:	without
Cover material Housing:	Aluminium
Protection class (IP):	IP65
Type of luminaire:	Bollard light
Operating device:	LED operating device, current-controlled
Rated luminous flux according to IEC 62722-2-1:	460 lm
Color temperature:	4000 K
Color rendering index CRI:	80-89
Light color:	white
With operating device:	yes
With motion detector:	yes
With light sensor:	yes
Voltage type:	AC
With base plate:	yes
Surface:	powder-coated
LED nominal current at constant current:	200,000,000 mA
Light distributor:	diffuser lens/optics/panel
Rated service life L70/B50 at 25 °C:	110,000 h
Max. System power:	7.0 W
Height/depth:	700 mm
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug terminal

Characteristics

With base plateYes

HABALVA BL 700/100 OP 360° 840 MD IR DALI

Manufacturer

HANEL10821240

GTIN4015120821240

Connection typePlug-in terminal

Type of lampBollard light

Type of wiringSuitable for through wiring

Rated lifetime L70/B50 at 25 °C110000 hours

Rated luminous flux according to IEC 62722-2-1460lm

Operating deviceLED control gear current controlled

Diameter100 mm

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for number of lamps1

Height/Depth700 mm

LED nominal current at constant current200,000,000mA

Conductor cross-section2.50 mm²

LampsLED not replaceable

Light colorWhite

Light distributorDiffuser lens/optics/panel

Max. system performance7.0W

With operating deviceYes

With motion detectorYes

With light sourceYes

With light sensorYes

Nominal voltage200 to 240 V

SurfacePowder coated

Number of poles5

Impact resistanceIK09

IP protection)IP65

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
