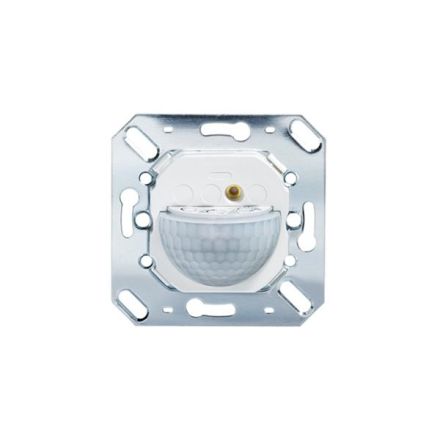

EsyLux EM10410024 Wall detector MD/PD 180 Slave

EsyLux EM10410024 Wall detector MD/PD 180 Slave

In stock

SKU: 283445

Bridging switch:No

With signal unit:Yes

Forced shutdown:No

Scanning angle:180 °

Forced switching on:No

All specifications

Price on request

€74.70

€0

Into a basketIn the basketGo

Overview

Slave detector to extend the detection range of a 'master' detector MD 180i/R or PD 180i/R with 180° detection range for wall mounting Range of up to 16m for cost-effective system expansion with up to 6 additional extensions

Property	Value
Depth:	70 mm
Width:	70 mm
Height:	55 mm
Version:	Presence detector
Color:	Other
Nominal voltage:	230 V
Material:	Plastic
Mounting type:	Flush-mounted
Protection class (IP):	IP20
Voltage type:	AC
Max. range to one side:	8.0 m
Scan angle:	180 °
Suitable for wall mounting:	yes
Creep-by protection/rear field monitoring:	yes
Temperature:	0 to 50 °C
Adjustable response brightness:	no
Adjustable response sensitivity:	no
Max. presence range:	6.29 m²
Max. Frontal range:	3.0 m
Sensor type:	passive infrared
Optimal installation height:	1.1 m
Surface finish:	matt
Material quality:	thermoplastic
Detection field diameter on floor:	16 m
Horizontal detection angle:	90 to 180 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	yes
Networkable:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	yes
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Forced switching on:	no
Suitable for ceiling mounting:	no
Connection type:	Plug-in terminal
Antibacterial treatment:	no
Installation depth:	34 mm
Installation diameter:	60 mm
Min. depth of the device box:	34 mm
