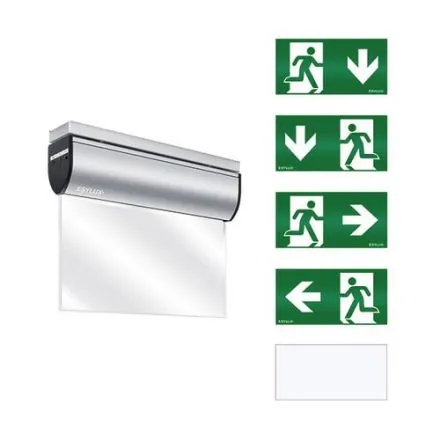

EsyLux EN10031618 SLC EL 3h 25m IR SC/C SM LED emergency light

In stock
SKU: 944965
€142.17
Into a basketIn the basketGo

Overview

Single battery emergency light with 3 hours of emergency lighting duration and 25 m (DIN) detection range for ceiling mounting with self-monitoring (SC) and fail-safe contact (opens in the event of a fault). Additional remote switch connection (F+, F-) for deactivating the emergency lighting function when the building is not in use. Complete with mounting accessories. Includes pictogram disc and 5 pictograms (bottom (both sides), right, left, empty symbol). Includes light source, 24 LEDs. Function control and self-monitoring can be triggered conventionally with a test button or conveniently with an ESY pen or Mobil-SLi remote control. Constant charge monitoring. Automatic, weekly function test and annual operating time test. Test results displayed using colored LEDs (green/red). Permanent and standby mode. Includes battery with reverse polarity protected plug connection. Connection using plug-in terminals. Cable entry from above using mounting accessories (included). Housing made of surface-treated aluminum.

PropertyValue
Housing color:Aluminum
Protection rating (IP):IP40
Protection class:I
Voltage type:AC
Detection range:25 m
Length:300 mm
Width:55 mm
Height/depth:235 mm
Max. System performance:3.0 W
Battery type:Lithium-ion
Rated operating time:3 h
Operating device:LED operating device, current-controlled
Light source:LED not replaceable
Socket:other
Rated voltage:230 V
With remote switch connection:yes
Cover material:transparent plastic
Installation width:55 mm
With Light source:yes
Installation length:300 mm
Switching type:maintained switching/standby switching
Monitoring device:automatic self-test
Mounting type:ceiling mounting
Housing material:aluminum
Suitable for marking type:acrylic glass plate
Feed:decentralized (single battery)
Function:escape route marking
With pictogram:yes
Suitable for number of lamps:1
Number of lamp heads:1
Light distributor:other
Luminaire with limited surface temperature 'D-mark':no
Rated ambient temperature according to IEC62722-2-1:0 to 40 °C
Installation height/depth:235 mm
Type of wiring:suitable for through-wiring
Number of poles:7
Conductor cross-section:2.50 mm²
Connection type:Plug connection
Read more

Characteristics

Circuit typeMaintained/standby mode
HABSLC EL 3h 25m IR SC/C SM
ManufacturerESYLUX
HANEN10031618
GTIN4015120031618
Connection typePlug connection
Type of wiringSuitable for through wiring
Rated ambient temperature according to IEC62722-2-10 to 40 °C
Operating deviceLED control gear current controlled
Width55 mm
Installation width55 mm
Installation height/depth235 mm
Installation length300 mm
VersionOther
FunctionEscape route marking
Suitable for number of lamps1
Housing colorAluminum
Height/Depth235 mm
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light distributorOther
Length300 mm
Max. system performance3.0W
With light sourceYes
Mounting typeCeiling mounting
Nominal voltage230V
Number of poles7
IP protection)IP40
Protection classI
Voltage typeAC
Cover materialPlastic transparent
Housing materialAluminum
Read more
