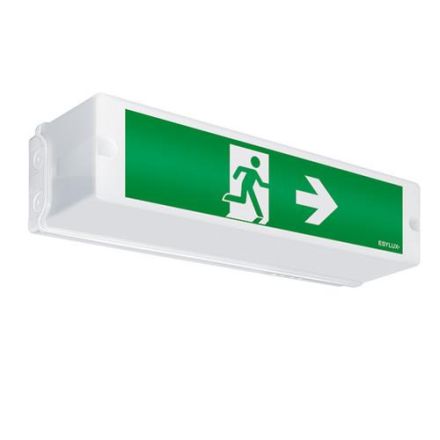

EsyLux EN10032660 SLA EL LED 8h 14m IR SC SM LED emergency light

In stock
SKU: 944964
€108.69
Into a basketIn the basketGo

Overview

Single battery emergency light with 8 hours of emergency light duration and 14 m viewing distance for wall and ceiling mounting with self-monitoring (SC). Prepared for wall bracket and pendant mounting using accessories. Including light sources (LEDs). Function control and self-monitoring can be triggered conventionally with a test button or conveniently with an ESY pen or Mobil-SLi remote control. Constant charge monitoring. Automatic, weekly function test and annual operating time test. Test results displayed using colored LEDs (green/red). Permanent and standby mode. Additional light output downwards. Includes battery with reverse polarity protected plug connection. Connection using plug-in terminals. Cable entry either from the rear or from the side (self-sealing membrane). Housing made of UV-stabilized polycarbonate.

PropertyValue
Housing color:white
Protection rating (IP):IP54
Protection class:II
Voltage type:AC
Detection range:14 m
Length:355 mm
Width:90 mm
Height/depth:115 mm
Max. System performance:3.0 W
Battery type:Lithium-ion
Rated operating time:8 h
Operating device:LED operating device, current-controlled
Light source:LED not replaceable
Impact resistance:IK03
Socket:other
Rated voltage:230 V
With remote switch connection:no
Cover material:Opal plastic
With light source:yes
Switching type:Maintained switching/standby switching
Monitoring device:Test button
Mounting type:Ceiling mounting
Housing material:Plastic
Suitable for marking type:Sticker
Supply:decentralized (single battery)
Function:Escape route marking
With pictogram:yes
Suitable for Number of lamps:1
Number of lamp heads:1
Light distributor:other
Rated service life L80/B10 at 25 °C:50000 h
Luminaire with limited surface temperature 'D-mark':no
Rated ambient temperature according to IEC62722-2-1:5 to 45 °C
Type of wiring:suitable for through-wiring
Number of poles:3
Conductor cross-section:2.50 mm²
Connection type:Plug connection

Characteristics

Circuit typeMaintained/standby mode
HABSLA EL LED 8h 14m IR SC SM
ManufacturerESYLUX
HANEN10032660
GTIN4015120032660
Connection typePlug connection
Type of wiringSuitable for through wiring
Rated lifetime L80/B10 at 25 °C50000 hours
Rated ambient temperature according to IEC62722-2-15 to 45 °C
Operating deviceLED control gear current controlled
Width90 mm
VersionOther
FunctionEscape route marking
Suitable for number of lamps1
Housing colorWhite
Height/Depth115 mm
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light distributorOther
Length355 mm
Max. system performance3.0W
With light sourceYes
Mounting typeCeiling mounting
Nominal voltage230V
Number of poles3
Impact resistanceIK03
IP protection)IP54
Protection classII
Voltage typeAC
Cover materialPlastic opal
Housing materialPlastic
