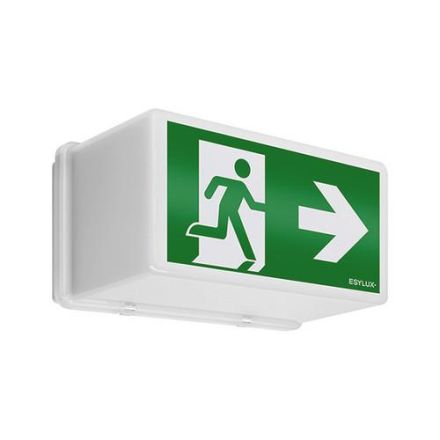

EsyLux EN10032677 SLB EL 8h 21m SM LED emergency light

EsyLux EN10032677 SLB EL 8h 21m SM LED emergency light

In stock

SKU: 944971

Price on request

€69.97

€0

Overview

Single battery emergency light with 8 hours of emergency light duration and 21 m viewing distance for wall and ceiling mounting. Prepared for wall bracket and pendant mounting using accessories. Conventional function control with test button, status display via LED. Permanent or standby mode are provided in the single battery emergency light.

Property	Value
Housing color:	white
Protection rating (IP):	IP54
Protection class:	II
Voltage type:	AC
Detection range:	21 m
Length:	250 mm
Width:	150 mm
Height/depth:	135 mm
Max. System performance:	3.0 W
Battery type:	Lithium-ion
Rated operating time:	8 h
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	other
Rated voltage:	230 V
With remote switch connection:	no
Cover material:	Opal plastic
With light source:	yes
Switching type:	Maintained switching/standby switching
Monitoring device:	Test button
Mounting type:	Ceiling mounting
Housing material:	Plastic
Suitable for marking type:	Sticker
Supply:	decentralized (single battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for Number of lamps:	1
Number of lamp heads:	1
Light distributor:	other
Rated service life L80/B10 at 25 °C:	50000 h
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	5 to 45 °C
Type of wiring:	suitable for through-wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
