EsyLux EP10424861 MD-Flat 360I/8 Rw Wago Winsta Codea motion detector

EsyLux EP10424861 MD-Flat 360I/8 Rw Wago Winsta Codea motion detector

In stock

SKU: 945095

Bridging switch:No

With signal unit:Yes

Number of switching zones:1

Response brightness:5 to 2000 lx

Forced shutdown:Yes

All specifications

Price on request

€123.02

€0

Into a basketIn the basketGo

Overview

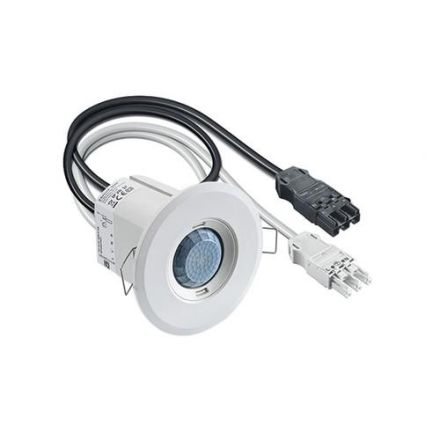

Designer motion detector, range approx. 8 m in Ø. 1 channel, switching, with zero-crossing switching optimized for LED lights. Master/slave (parallel connection). Flat optics with designer covers made of plastic: round, white - variably interchangeable (alternatively: glass, square, black), protection class IP20, dimensions height/depth 76.5 mm, Ø 94 mm, detection angle 360°, detection range across Ø 8 m, detection area up to 50 m², inrush current 78 A / 5 µs, permissible ambient temperature 0 °C...+50 °C

Property	Value
Height:	76 mm
Design:	motion detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP20
Max. Switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	4.0 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	60 s
Max. Duty cycle:	30 min
Anti-creep protection/rear field monitoring:	yes
Temperature:	0 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. range, frontal:	3.0 m
Max. Inrush current:	78 A
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Material quality:	thermoplastic
Detection field diameter on floor:	8 m
Number of switching zones:	1
Detection angle horizontal:	180 to 360 °
Frequency:	50 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
Suitable for C load:	yes
With DALI interface:	no
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	other
Antibacterial treatment:	no
Diameter:	94 mm
Installation depth:	300 mm
Installation diameter:	68 mm
Min. depth of the device box:	300 mm
