EsyLux EP10426025 Mini detector LB16 PD-C360i/8 mini opal-matt

EsyLux EP10426025 Mini detector LB16 PD-C360i/8 mini opal-matt

In stock

SKU: 283428

Bridging switch:Yes

With signal unit:Yes

Number of switching zones:1

Response brightness:5 to 2000 lx

Forced shutdown:Yes

All specifications

Price on request

€93.59

€0

Into a basketIn the basketGo

Overview

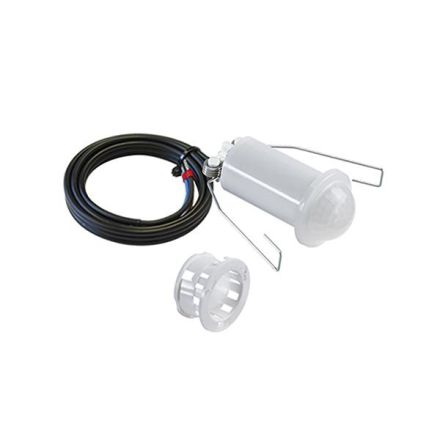

Mini presence detector with 360° detection range for ceiling installation. Range of up to 8/12m in diameter for use in small rooms, passageways, toilets, small offices, corridors, 16 A high-performance relay (tungsten pre-contact), permanently stored factory program for immediate operational readiness.Technical data: Mains voltage 230 V/50 Hz, power consumption approx. 0.2 W, detection range 360°, range approx. 8 m or 12 m in , with a mounting height of 3 m, electronic setting options via infrared remote controls Mobil-PDi/MDi, Mobil-RCi-M and Mobil-PDi/MDi-universal (order separately), permissible ambient temperature -10 °C...+50 °C, protection class IP 55, protection class II, mounting type ceiling recessed mounting, housing material UV-stabilized PE, UV-stabilized polycarbonate, installation dimensions: installation depth 45 mm, installation hole size 25 mm, supply cable 60 cm, 4 x 1.00 mm, scope of delivery includes lens mask, installation spring clips, installation clamping ring, slave input yes, channel 1 lighting, contact normally open/non-floating, switching capacity 230 V/50 Hz / (16 A relay), 2300 W/10 A (cos phi = 1), 1150 VA/5 A (cos phi = 0.5), capacitive load/EVGs max. inrush current 800 A/200 s, button input 1 yes, follow-up time pulse/approx. 1 min. - 30 min., light measurement mixed light, light value approx. 5 - 2000 lux, follow-up time pulse/approx. 1 min. - 30 min., color opal-matt, dimensions: height 60mm, 33mm

Property	Value
Height:	60 mm
Design:	Presence detector
Colour:	other
Nominal voltage:	230 V
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP55
Max. Switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	4.0 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	60 s
Max. Duty cycle:	15 min
Creep-under protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence area:	7.08 m²
Max. frontal range:	2.5 m
Max. Inrush current:	800 A
Sensor type:	passive infrared
Optimal installation height:	3.0 m
Surface finish:	matt
Material quality:	Thermoplastic
Detection field diameter on floor:	8 m
Number of switching zones:	1
Switch-off delay:	300 s
Switch-on delay:	30 s
Horizontal detection angle:	180 to 360 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote control:	yes
With Signal unit:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	yes
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	crimping
Antibacterial treatment:	no
Diameter:	33 mm
Installation depth:	45 mm
Installation diameter:	25 mm
Min. depth of device box:	45 mm
