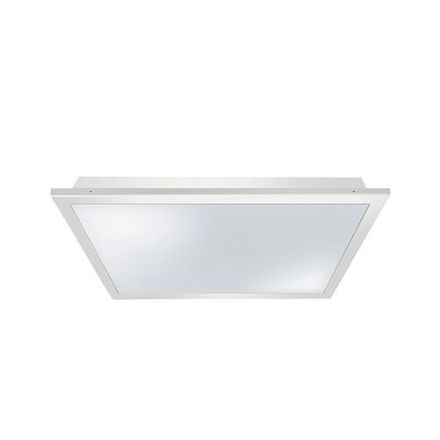

EsyLux EQ10132315 CELINE-2 600 DDP OP 4000 840 IP20 ELC LED recessed light

EsyLux EQ10132315 CELINE-2 600 DDP OP 4000 840 IP20 ELC LED recessed light

In stock

SKU: 944966

Rated service life L90/B10 at 25 °C:35000 h

HAB:CELINE-2 600 DDP OP 4000 840 IP20 ELC

Manufacturer:ESYLUX

HAN:EQ10132315

GTIN:4015120132315

All specifications

Price on request

€85.55

€0

Into a basketIn the basketGo

Overview

LED light with opal diffuser. Can be used as a recessed ceiling light for system ceilings with concealed or visible support rails for system dimensions 600 x 600 mm (Please note special features and possible restrictions of the ceiling system manufacturer!). Light for ESYLUX Light Control for connection via RJ45 plug to ESYLUX Smartdriver or to DALI-2 Driver Set or to ON/OFF Driver Set (not included in delivery). Color temperature approx. 4000 K (neutral white). Very good light quality, suitable for computer workstations in accordance with EN 12464-1. Rated service life L₈₀B₅₀ at 25 °C: 70,000 h.

Property	Value
Max. System power:	33.0 W
Rated luminous flux according to IEC 62722-2-1:	4200 lm
Suitable for number of lamps:	1
Length:	596 mm
Width:	596 mm
Height/depth:	65 mm
Protection rating (IP):	IP20
Protection class:	III
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	42 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	65000 h
Suitable for wall mounting:	no
Voltage type:	DC
With motion detector:	no
Beam angle:	extremely wide beam>80°
With light source:	yes
Light source:	LED replaceable
Rated ambient temperature according to IEC62722-2-1:	0 to 40 °C
Socket:	other
With operating device:	yes
Cover material:	plastic opal
Light distributor:	Diffuser lens/optics/panel
Installation height/depth:	140 mm
Without dimming function:	no
Installation width:	600 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations according to EN 12464-1:	yes
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation length:	600 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	yes
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge phase control:	no
Dimming leading edge phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Highest energy efficiency class of the replaceable lamp:	E
Rated service life L70/B50 at 25 °C:	110000 h
Rated service life L90/B10 at 25 °C:	35000 h
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Luminaire luminous efficacy:	127 lm/W
Type of wiring:	Termination

Characteristics

Rated service life L90/B10 at 25 °C35000 h

HABCELINE-2 600 DDP OP 4000 840 IP20 ELC

Manufacturer

HANEQ10132315

GTIN4015120132315

Covering the luminaire with thermal insulation material possibleNo

Type of wiringDiploma

Execution of the gridWithout

Rated lifetime L70/B50 at 25 °C110000 hours

Rated lifetime L80/B10 at 25 °C65000 hours

Rated luminous flux according to IEC 62722-2-14200lm

Rated ambient temperature according to IEC62722-2-10 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width596 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificYes

Dimming with push buttonNo

Dimming programmableNo

Installation width600 mm

Installation height/depth140 mm

Installation length600 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth65 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy127lm/W

LampsLED replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length596 mm

Max. system performance33.0W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage42V

Without dimming functionNo

Impact resistanceIK02

IP protection)IP20

Protection classIII

Voltage typeDC

Cover materialPlastic opal

Housing materialSteel
