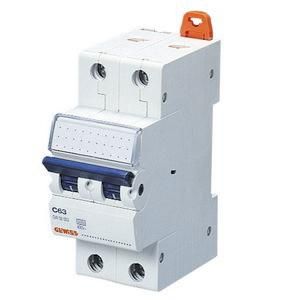

Gewiss GW92546 (MCB) B-10A 10kA 2-pole 2TE circuit breaker

Gewiss GW92546 (MCB) B-10A 10kA 2-pole 2TE circuit breaker

In stock

SKU: 662124

Price on request

€49.32

€0

Overview

Miniature circuit breaker (MCB) according to EN60898-1, with time-delayed thermal overload release and electromagnetic short-circuit release. Alternatively, a RESTART restart device RM TOP, a RESTART remote operator CM or two auxiliary devices can be installed on the left side. With label window on the device. Connection (max): 35 mm² with insulated plug-in protection. The connection screws can be provided with a sealable cover (order accessories separately). The switching lever can be sealed in the switched-on and off state or can be locked with a lever lock for a padlock. The switching lever can be sealed in the switched-on and off state or can be locked with a lever lock for a padlock.

Property	Value
Triggering characteristic:	B
Rated current:	10 A
Rated voltage:	400 V
Type of voltage:	AC
Frequency:	50 to 60 Hz
Width in pitch units:	2
Number of poles (total):	2
Energy limitation class:	3
Additional equipment possible:	yes
Overvoltage category:	3
Installation depth:	72 mm
Protection class (IP):	IP20
Rated switching capacity Icn according to EN 60898 at 230 V:	10 kA
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	30 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	20 kA
Rated switching capacity Icn according to EN 60898 at 400 V:	10 kA
Pollution level:	3
Switching neutral conductor:	no
Number of protected poles:	2
Rated insulation voltage Ui:	500 V
Rated impulse withstand voltage Uimp:	4 kV
Ambient temperature during operation:	-25 to 60 °C
Connectable conductor cross-section, stranded:	35 mm²
Connectable conductor cross-section, single-wire:	35 mm²
