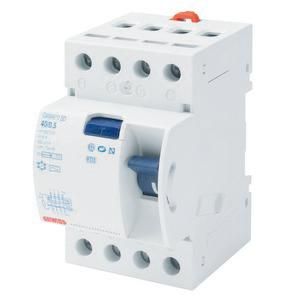

Gewiss GW94869 SD FI 25/0.3A 4P A 3TE residual current circuit breaker

In stock
SKU: 658138
€41.12
Into a basketIn the basketGo

Overview

Compact residual current circuit breaker (RCCB) as a mains voltage-independent residual current circuit breaker (RCCB) in accordance with EN61008-1. Suitable for the subsequent installation of 1 additional device or module for automatic restart. Installation depth 64mm, connection (max): 25mm². The 4-pole residual current circuit breaker only requires 3 space units

Property Value
Rated voltage: 400 V
Rated current: 25 A
Rated residual current: 0.3 mA
Mounting type: DIN rail
Protection class (IP): IP20
Frequency: 50/60 Hz
Number of poles: 4
Width in pitch units: 3
Selective type: no
Fault current type: A
Additional devices possible: yes
Installation depth: 72 mm
Short circuit strength (Icw): 6 kA
Surge current strength: 0.25 kA
Short-time delayed type: no
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 4 kV
With locking device: no
Ambient temperature during operation: -25 to 40 °C
Pollution degree: 2
Connectable conductor cross-section, stranded: 35 mm²
Connectable conductor cross-section, single-wire: 35 mm²

Characteristics

HABSD FI 25/0.3A 4P A 3TE
ManufacturerGewiss
HANGW94869
GTIN8011564214439
Connectable conductor cross-section solid35 mm²
Connectable conductor cross-section stranded35 mm²
Rated residual current0.3mA
Rated insulation voltage Ui500V
Rated voltage400V
Rated impulse withstand voltage Uimp4kV
Rated current25A
Width in pitch units3
Installation depth72 mm
Residual current typeA
Frequency50/60Hz
Short circuit strength (Icw)6kA
Short-time delayed typeNo
With locking deviceNo
Mounting typeDIN rail
Number of poles4
IP protection)IP20
Selective typeNo
Surge current strength0.25kA
Ambient temperature during operation-25 to 40 °C
Degree of contamination2
Additional equipment possibleYes
