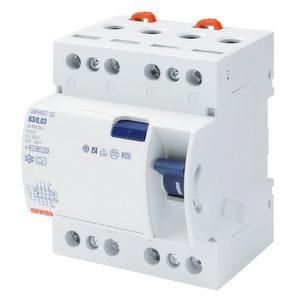

Gewiss GW95609 SD FI 125/0.5A 4P A 4TE residual current circuit breaker

Gewiss GW95609 SD FI 125/0.5A 4P A 4TE residual current circuit breaker

In stock

SKU: 657264

Price on request

€895.85

€0

Into a basketIn the basketGo

Overview

FI circuit breaker as a mains voltage independent residual current circuit breaker (RCCB) according to EN61008-1. Suitable for the subsequent installation of 1 additional device. Connection (max): 50qmm.

Property	Value
Rated voltage:	400 V
Rated current:	125 A
Rated residual current:	0.5 mA
Mounting type:	DIN rail
Protection class (IP):	IP20
Frequency:	50/60 Hz
Number of poles:	4
Width in pitch units:	4
Selective type:	no
Fault current type:	A
Additional devices possible:	yes
Installation depth:	72 mm
Short circuit strength (Icw):	10 kA
Surge current strength:	0.25 kA
Short-time delayed type:	no
Rated insulation voltage Ui:	500 V
Rated impulse withstand voltage Uimp:	4 kV
With locking device:	no
Ambient temperature during operation:	-25 to 40 °C
Pollution degree:	2
Connectable conductor cross-section, stranded:	35 mm²
Connectable conductor cross-section, single-wire:	35 mm²

Characteristics

HABSD FI 125/0.5A 4P A 4TE

Manufacturer

HANGW95609

GTIN8011564204683

Connectable conductor cross-section solid35 mm²

Connectable conductor cross-section stranded35 mm²

Rated residual current0.5mA

Rated insulation voltage Ui500V

Rated voltage400V

Rated impulse withstand voltage Uimp4kV

Rated current125A

Width in pitch units4

Installation depth72 mm

Residual current typeA

Frequency50/60Hz

Short circuit strength (Icw)10kA

Short-time delayed typeNo

With locking deviceNo

Mounting typeDIN rail

Number of poles4

IP protection)IP20

Selective typeNo

Surge current strength0.25kA

Ambient temperature during operation-25 to 40 °C

Degree of contamination2

Additional equipment possibleYes
