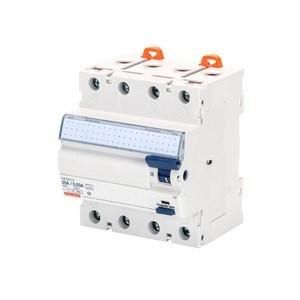

Gewiss GWD4134 40A A/0.3 4M 4-pole residual current circuit breaker

In stock
SKU: 663364
€32.83
Into a basketIn the basketGo

Overview

FI circuit breaker as a mains voltage-independent residual current circuit breaker (RCCB) EN61008-1. Suitable for the subsequent installation of 2 additional devices and/or combinations with modules for automatic restart. The switching lever can be sealed in the switched-on and off state or can be locked with a lever lock (order accessories separately) for a padlock. With integrated residual current display and fold-down label plate. Connection (max): 35 mm² with insulated plug-in protection. The connection screws can be provided with a sealable cover (order accessories separately).

Property Value
Rated voltage: 400 V
Rated current: 40 A
Rated residual current: 0.3 mA
Mounting type: DIN rail
Protection class (IP): IP20
Frequency: 50/60 Hz
Number of poles: 4
Width in pitch units: 4
Selective type: no
Fault current type: A
Additional devices possible: yes
Installation depth: 72 mm
Short circuit strength (Icw): 10 kA
Surge current strength: 0.25 kA
Short-time delayed type: no
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 4 kV
With locking device: no
Ambient temperature during operation: -25 to 40 °C
Pollution degree: 2
Connectable conductor cross-section, stranded: 35 mm²
Connectable conductor cross-section, single-wire: 35 mm²

Characteristics

HAB40A A/0.3 4M 4-pin
ManufacturerGewiss
HANGWD4134
GTIN8011564824317
Connectable conductor cross-section solid35 mm²
Connectable conductor cross-section stranded35 mm²
Rated residual current0.3mA
Rated insulation voltage Ui500V
Rated voltage400V
Rated impulse withstand voltage Uimp4kV
Rated current40A
Width in pitch units4
Installation depth72 mm
Residual current typeA
Frequency50/60Hz
Short circuit strength (Icw)10kA
Short-time delayed typeNo
With locking deviceNo
Mounting typeDIN rail
Number of poles4
IP protection)IP20
Selective typeNo
Surge current strength0.25kA
Ambient temperature during operation-25 to 40 °C
Degree of contamination2
Additional equipment possibleYes
