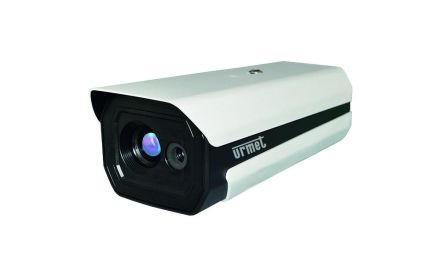

Grothe 1099/810 TK thermal imaging camera
Thermal resolution 384 x 288 px
Optical resolution 5 MP
Measuring range: 30 °C to 45 °C at 5 - 6 meters
Measuring accuracy: 0.5 °C, 0.3 °C with black body
Multi-person measurement
Temperature monitoring in through traffic
Description
Box thermal imaging camera for medium to high through traffic
The advantages of the box thermal imaging camera
Temperature measurement for up to 30 people
Simultaneous video surveillance in 5MPX
Incl. analysis software with alarm function when the maximum temperature is exceeded
Application areas
Anywhere where there is a lot of through traffic and the temperature measurement should not interrupt the flow of visitors.
Local public transport
Public buildings such as town halls, offices or libraries
Airports
and much more.
Technical highlights
Measurement accuracy of 0.5°C
Temperature detection at a distance of up to 6 meters
With additional use of the so-called Black Body (item no. 3000/260) the accuracy of temperature detection is increased to up to 0.3°C
Technical data:
Design: Box
Detector type thermal: 17 &mu,m vanadium, uncooled
Resolution thermal: 384 x 288 pxl
Thermal resolution: 384 x 288 pixels
Resolution: 5MPX
NEID: &le,60 mK @30° C
Lens thermal: 8mm, fixed focal length
Special feature: temperature measurement
Field of view thermal: 19.5° H x 14.7° V
Min. focusing distance: 1.5 m
Temperature measuring distance: 5 - 6 m
Color palettes: Black, white, pseudo colors
Image sensor: 1/1.8 CMOS SONY IMX178
Optical resolution: 2592 x 1944 pixels
Optical lens: 5.5 mm, fixed focal length
Optical field of view: 50° H x 38° V
Electronic shutter: 1/30 s - 1/100000 s
Wide dynamic range: 120 dB
Backlight compensation (BLC) : Yes
Headlight compensation (HLC) : Yes
Defogging (Defog) : Yes
Noise reduction (DNR) : 2D / 3D
Video compression: H.265 / H.264 / MJPEG
H.264 standard: Profile: Base / Main / High
Image resolution: 5MP, 4MP, 2K, 3MP, 1080P
Mainstream: 5MP/4MP/2K/3MP/1080P/720P @25fps
Substream: 720P/D1/CIF @25fps
3rd stream: D1/CIF/480x240 @25fps
Image settings: ROI, saturation, brightness, color, contrast, WDR, sharpening, noise reduction - adjustable via client software
Video & data overlay: The thermal image and the temperature can be overlaid on the camera image.
Network: RJ45
Video output: 1 channel CVBS
Storage: Micro SD card up to 128GB
Reset: Yes
RS 485/232: Yes
Alarm: 1 input / 1 output
Keyboard: Yes
Temperature measurement without reference body: 0.5° C (@30° C - 42° C)
Temperature measurement with reference body: 0.3° C (@30° C - 42° C)
Max. number of simultaneous measuring points: max. 30 people at the same time
Temperature alarms: high temperature, low temperature, temperature exception
Remote access: WEB browser, PC client software
Network protocols: IPv4, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP,802.1x,UPnP,HTTP, HTTPS,QoS
Online connections: max. 10 users at the same time, supports real-time multistream
Interface protocol: ONVIF
Alarm function: motion detection, SD card error, SD card full, IP address conflict, cable connection
Power supply: 5-12 V DC
Power consumption: < 4 W
Ambient temperature: -20°C - 60° C, < 95% rel. humidity, non-condensing
Storage temperature: -30°C - +65° C
Mounting type: Wall mounting, ceiling mounting
| Property | Value |
| With touchscreen: | no |
| Thermal image: | yes |
| Visual representation: | yes |
| Thermal/visual image (in one image): | yes |
| Video recording: | yes |
| Frames per second (fps): | 25 |
| Thermal sensitivity at 30 °C: | 0.06 °C |
| Temperature measuring range: | 30 to 42 °C |
| Relative measuring accuracy: | 1.2 % |
| Frequency band: | 17 µm |
| Horizontal field of view angle (FOV): | 50 ° |
| Vertical field of view angle (FOV): | 38 ° |
| Autofocus: | yes |
| Automatic alignment: | no |
| Focus stacking: | no |
| Image averaging: | no |
| Digital zoom: | 2 |
| Image size can be enlarged: | no |
| With memory function: | no |
| Internal memory: | no |
| SD card slot: | yes |
| MiniSD card slot: | no |
| MicroSD card slot: | no |
| CompactFlash card slot type I: | no |
| CompactFlash card slot type II: | no |
| USB port: | no |
| Bluetooth interface: | no |
| WiFi compatible: | no |
| Analog Video output: | yes |
| HDMI port: | no |
| Ethernet: | no |
| Gigabit Ethernet: | no |
| FireWire port (IEEE1394): | no |
| Cooled detector: | no |
| Ambient temperature: | -20 to 60 °C |
| With laser: | no |
| With built-in lamp: | no |
| With tripod mount: | yes |
| Suitable for interchangeable lenses: | no |
| With digital alarm: | yes |
| With humidity sensor: | no |
| With laser distance measurement: | no |
| Battery operated: | no |
| External power supply required: | yes |
| Input voltage at DC: | 5 to 12 V |
| Power consumption: | 4 W |
| Protection class (IP): | IP65 |
| Weight: | 4.5 kg |
