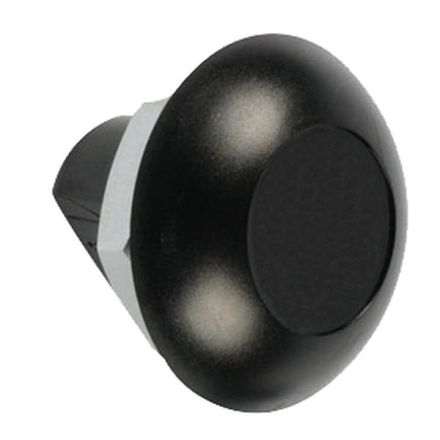

Grothe 74950 Mushroom head V2 reader, 74950

In stock
SKU: 493659
€122.60
Into a basketIn the basketGo

Overview

Easy Door Controller Simple installation - simple programming - maintenance-free As a stand-alone device or for integration into a virtual network with up to 2000 users Simple storage without software installation via cloud portal.Product features:Easydoorcontroller 13.56 MHz MIFARE®Technology 2-wire technology between control panel and reader maximum distance 100 meters Power supply via two-wire cable 1 door can be controlled per control panel Up to 2000 users with up to 50 doors can be managed via easydoorcontroller.com web software and encoder.Technical specifications:Built-in reader Easydoorcontroller 13.56 MHz MIFARE® suitable for control panel GB-140-082 Vandal-proofInstallation note:Note:

Property Value
Max. Number of doors: 1
Reading method: Data carrier
Operating temperature: -20 to 60 °C
Mounting type: Surface-mounted/flush-mounted
Width: 40 mm
Height: 27 mm
Depth: 15 mm
Signal output: Light signal
Protection class (IP): IP66
Interface design: Bus system
Color: black
Design: Reader
Material: Plastic
Power over Ethernet: without

Characteristics

Reading methodData carrier
Power over EthernetWithout
Max. number of doors1
Signal outputLight signal
HAB74950 Mushroom Head V2
ManufacturerGrothe
HAN74950
GTIN4011459749507
VersionReader
Implementation of the interfaceBus system
Operating temperatur-20 to 60 °C
Width40 mm
ColorBlack
Height27 mm
Mounting typeSurface-mounted/flush-mounted
IP protection)IP66
Depth15 mm
MaterialPlastic
