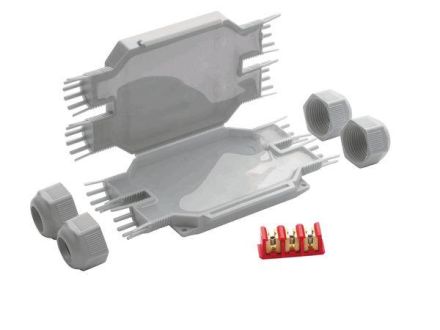

With Raytech connectors, Grothe delivers an extremely quick-to-use, user-friendly and indefinitely durable connection system for power cables. The gel-filled connection sleeves revolutionize the connection of live cables and offer protection, insulation and sealing even in adverse environments. The connection sleeves enable a completely secure connection of all types of power cables, which is suitable for use underground and even under water (protection classes IP68 / IPX8 / IP69K).Product features:Gel-filled micro connection sleeve with 4 inputs for different connections and branch connections, ready for immediate use/ready to use, extremely compact and unobtrusive in design.With 4 cable glands to protect against accidental pulling out of the cable Complete with terminals Filled with non-toxic and unclassified gel Extremely compact and ready to use Always accessible With tabs for wall mounting Halogen-free and UV-resistant Ideal for different combinations for branch connectionsTechnical data:For 3 cables up to max. 3 x 4 mm or 4 cables up to max. 3x 2.5 mm Cable diameter 8 - 13 mmPackaging content 1 piece per blister Color gray Dimensions: 105 x 65 x 25 mmInstallation instructions:Note:
