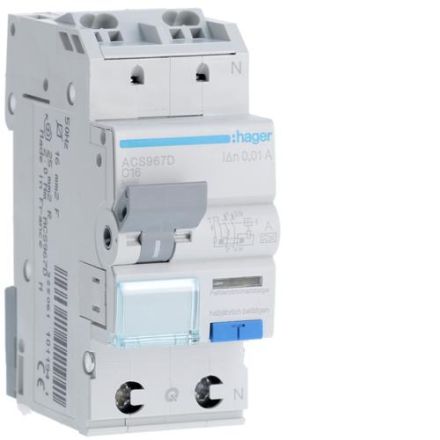

Hager ACS967D residual current circuit breaker 1P+N 127V 6kA C-16A 10mA Type A QC

In stock
SKU: 305296
€64.62
Into a basketIn the basketGo

Overview

Residual current circuit breaker 1P+N 127V 6kA C-16A 10mA Type A QuickConnect. Residual current circuit breaker in accordance with DIN EN 61009-1 (VDE 0664-20) with QuickConnect terminal, on the outgoing circuit up to 20 A and on the incoming circuit up to 63 A, blue test button and residual current display. Easy individual removal from the phase busbar system. Suitable for the subsequent installation of additional equipment. Labeling option directly on the device.

Property Value
Triggering characteristic: C
Rated current: 16 A
Rated residual current: 0.01 A
Rated voltage: 127 V
Frequency: 50 Hz
Number of poles (total): 2
Width in pitch units: 2
Fault current type: A
Installation depth: 68 mm
Rated breaking capacity according to IEC 60947-2: 6 kA
Surge current strength: 0.25 kA
Degree of protection (IP): IP20
Energy limitation class: 3
Overvoltage category: 3
Pollution degree: 2
Switching neutral conductor: yes
Number of protected poles: 1
Type of voltage: AC
False tripping protection: no
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 4 kV
Rated short-circuit breaking capacity Icn according to EN 61009-1: 6 kA
Shutdown characteristics: undelayed
With locking device: yes
Ambient temperature during operation: -25 to 40 °C

Characteristics

Shutdown characteristicsWithout delay
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
ManufacturerHAGER
HANACS967D
GTIN3250611011941
Number of protected poles1
Trigger characteristicsC
Rated breaking capacity according to IEC 60947-26kA
Rated residual current0.01A
Rated insulation voltage Ui500V
Rated voltage127V
Rated impulse withstand voltage Uimp4kV
Rated current16A
Width in pitch units2
Installation depth68 mm
Energy limitation class3
False trigger protectionNo
Residual current typeA
Frequency50Hz
With locking deviceYes
Switching neutral conductorYes
Number of poles (total)2
IP protection)IP20
Voltage typeAC
Surge current strength0.25kA
Ambient temperature during operation-25 to 40 °C
Degree of contamination2
Overvoltage category3
