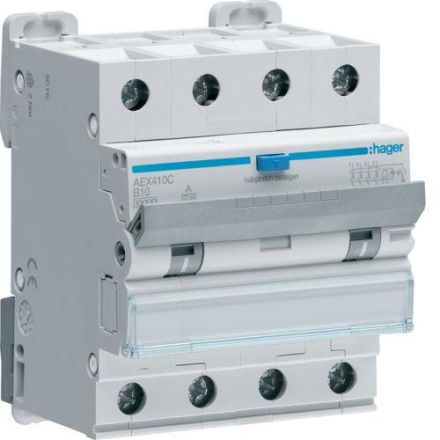

Hager AEX410C 4-pole 10kA B-10A 100mA A type circuit breaker

Hager AEX410C 4-pole 10kA B-10A 100mA A type circuit breaker

In stock

SKU: 917030

Price on request

€207.29

€0

Overview

AEX410C 4-pole 10kA B-10A 100mA A type circuit breaker Manufacturer article number: AEX410C, Manufacturer article name: AEX410C 4-pole 10kA B-10A 100mA A type

Property	Value
Tripping characteristic:	B
Rated current:	10 A
Rated residual current:	0.1 A
Rated voltage:	400 V
Frequency:	50 Hz
Number of poles (total):	4
Width in pitch units:	4
Residual current type:	A
Installation depth:	70 mm
Surge current strength:	3 kA
Degree of protection (IP):	IP20
Energy limitation class:	3
Overvoltage category:	3
Degree of pollution:	2
Switching neutral conductor:	no
Number of protected poles:	4
Type of voltage:	AC
False tripping protection:	no
Rated insulation voltage Ui:	500 V
Rated impulse withstand voltage Uimp:	4 kV
Rated short-circuit breaking capacity Icn according to EN 61009-1:	10 kA
Shutdown characteristic:	undelayed
With locking device:	yes
Ambient temperature during operation:	-25 to 40 °C
Connectable conductor cross-section, single-wire:	1 to 25 mm²
Connectable conductor cross-section, stranded:	1 to 16 mm²
