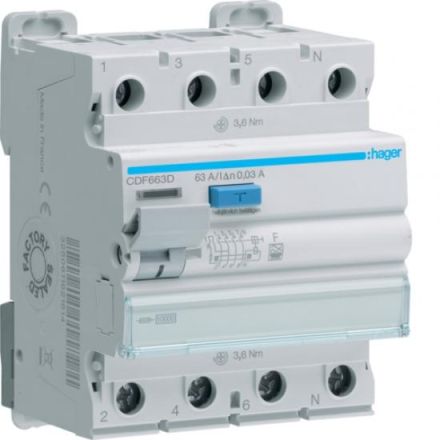

Hager CDF663D 4P 10kA 63A 30mA Type F residual current circuit breaker

In stock
SKU: 410522
€392.68
Into a basketIn the basketGo

Overview

Residual current circuit breaker 4-pole 10kA 63A 30mA type F. Residual current circuit breaker (FI) in accordance with EN 61008-1, DIN EN 61008-2-1,0664 part 10 + 11, contact protection IP2x in accordance with DIN0106 part 100. Suitable for the subsequent installation of additional equipment (installation without tools). Connection terminals with wire insertion protection, bi-connect terminals at the bottom, external blue test button. All products with symbol. Labeling option directly on the device.

Property Value
Rated voltage: 400 V
Rated current: 63 A
Rated residual current: 0.03 mA
Mounting type: DIN rail
Protection class (IP): IP20
Frequency: 50 Hz
Number of poles: 4
Width in modular spacing: 4
Selective type: no
Residual current type: F
Additional devices possible: yes
Installation depth: 70 mm
Short-circuit strength (Icw): 10 kA
Surge current strength: 5 kA
Short-time delayed type: yes
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 4 kV
With locking device: yes
Ambient temperature during operation: -25 to 70 °C
Pollution degree: 2
Connectable conductor cross-section, stranded: 1 to 16 mm²
Connectable conductor cross-section, solid: 1 to 25 mm²

Characteristics

ManufacturerHAGER
HANCDF663D
GTIN3250611621621
Connectable conductor cross-section solid1 to 25 mm²
Connectable conductor cross-section stranded1 to 16 mm²
Rated residual current0.03mA
Rated insulation voltage Ui500V
Rated voltage400V
Rated impulse withstand voltage Uimp4kV
Rated current63 A
Width in pitch units4
Installation depth70 mm
Residual current typeF
Frequency50Hz
Short circuit strength (Icw)10kA
Short-time delayed typeYes
With locking deviceYes
Mounting typeDIN rail
Number of poles4
IP protection)IP20
Selective typeNo
Surge current strength5kA
Ambient temperature during operation-25 to 70 °C
Degree of contamination2
Additional equipment possibleYes
