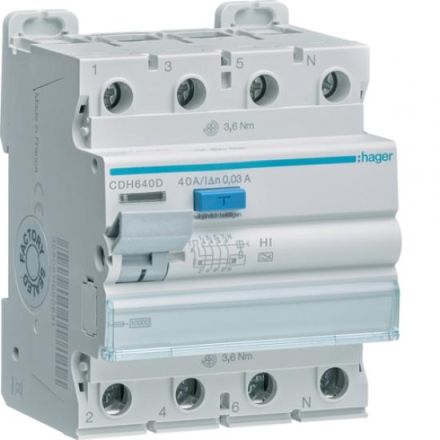

Hager CDH640D 4P 10kA 40A 30mA Type HI residual current circuit breaker

In stock
SKU: 410523
€198.84
Into a basketIn the basketGo

Overview

Residual current circuit breaker 4-pole 10kA 40A 30mA type HI surge current resistant. Residual current circuit breaker (FI) in accordance with EN 61008-1, DIN EN 61008-2-1,0664 part 10 + 11, contact protection IP2x in accordance with DIN0106 part 100. Suitable for the subsequent installation of additional equipment (installation without tools). Connection terminals with wire insertion protection, bi-connect terminals at the bottom, external blue test button. All products with symbol. Labeling option directly on the device.

Property Value
Rated voltage: 400 V
Rated current: 40 A
Rated residual current: 0.03 mA
Mounting type: DIN rail
Protection class (IP): IP20
Frequency: 50 Hz
Number of poles: 4
Width in modular spacing: 4
Selective type: no
Residual current type: other
Additional devices possible: yes
Installation depth: 70 mm
Short-circuit strength (Icw): 10 kA
Surge current strength: 5 kA
Short-time delayed type: no
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 4 kV
With locking device: yes
Ambient temperature during operation: -25 to 70 °C
Pollution level: 2
Connectable conductor cross-section, stranded: 1 to 16 mm²
Connectable conductor cross-section, solid: 1 to 25 mm²

Characteristics

ManufacturerHAGER
HANCDH640D
GTIN3250611620686
Connectable conductor cross-section solid1 to 25 mm²
Connectable conductor cross-section stranded1 to 16 mm²
Rated residual current0.03mA
Rated insulation voltage Ui500V
Rated voltage400V
Rated impulse withstand voltage Uimp4kV
Rated current40A
Width in pitch units4
Installation depth70 mm
Residual current typeOther
Frequency50Hz
Short circuit strength (Icw)10kA
Short-time delayed typeNo
With locking deviceYes
Mounting typeDIN rail
Number of poles4
IP protection)IP20
Selective typeNo
Surge current strength5kA
Ambient temperature during operation-25 to 70 °C
Degree of contamination2
Additional equipment possibleYes
