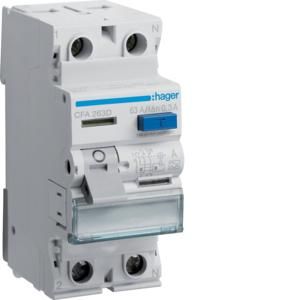

Hager CFA263D residual current circuit breaker 2-pole 63/0, 3A

In stock

SKU: 156271

Price on request

€116.59

€0

Overview

Residual current circuit breaker 2-pole 6kA 63A 300mA type A. Residual current circuit breaker (FI) according to EN 61008-1, DIN EN 61008-2-1,0664 part 10 + 11, contact protection IP2x according to DIN0106 part 100. Suitable for the subsequent installation of additional equipment (installation without tools). Connection terminals with wire insertion protection, bi-connect terminals at the bottom, external blue test button. All products with symbol. Labeling option directly on the device.

Property	Value
Rated voltage:	230 V
Rated current:	63 A
Rated residual current:	0.3 mA
Mounting type:	DIN rail
Protection class (IP):	IP20
Frequency:	50 Hz
Number of poles:	2
Width in modular spacing:	2
Selective type:	no
Residual current type:	A
Additional devices possible:	yes
Installation depth:	70 mm
Short-circuit strength (Icw):	6 kA
Surge current strength:	0.25 kA
Short-time delayed type:	no
Rated insulation voltage Ui:	500 V
Rated impulse withstand voltage Uimp:	4 kV
With locking device:	yes
Ambient temperature during operation:	-25 to 40 °C
Pollution level:	2
Connectable conductor cross-section, stranded:	1 to 16 mm²
Connectable conductor cross-section, single-wire:	1 to 25 mm²
