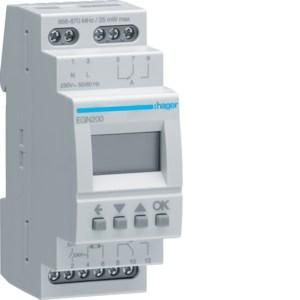

Hager EGN200 Bluetooth 2-channel timer

In stock
SKU: 703769
€140.29
Into a basketIn the basketGo

Overview

Digital multifunction timer with Bluetooth, 2-channel. Digital multifunction timer 2-channel with illuminated display, integrated Bluetooth function and app programming for time, brightness and location-dependent control. Can be used as a day, week, year and astro clock, also with integrated twilight switch function. Exception control via wired external switch/button or KNX radio switch/button. Programming on the device or via app: time and date (factory set), automatic summer/winter time change, public holiday and school holiday times can be selected depending on location, access blocked via app or key combination, temporary and permanent exception control on/off/pulse. Programs can be created in the app, adopted from previously used templates or exceptions can be activated. A portal can optionally be used to pass on and externally save the program. Bar display for quick recognition of the program. Reduction of the contact load through zero-crossing switching. Programming without mains voltage possible via integrated power reserve (approx. 10 years). Note: Communication protocol from version Bluetooth 4.2 and KNX radio RF quicklink. Twilight switch function via brightness installation or surface-mounted sensor is not included.

Property Value
Width in division units: 2
Number of channels: 2
Protection class (IP): IP20
Supply voltage: 230 V
Weekly program: yes
Annual program: yes
Mounting type: DIN rail
Type of supply voltage: AC
Frequency of supply voltage: 50 to 60 Hz
Power reserve in hours: 87600
Accuracy per day: 0.25 s
Text guidance in display: no
24 h program: yes
60 min program: yes
Automatic summer/winter time change: yes
Shortest switching time channel 1: 1 min
Holiday program: no
Pulse program: yes
Cycle program: yes
Astro program: yes
External button input: yes
Random program: no
Operating hours counter: no
Mains synchronous: yes
Quartz controlled: yes
Radio controlled: no
Shortest switching time channel 2: 1 min
Manual operation: yes
Switching preselection: yes
Nominal switching current at 250 V AC: 16 A
Potential-free switching contact: no
Width: 35.8 mm
Height: 90 mm
Depth: 61.6 mm
External programming: yes
Radio-controlled (DCF77): no
GPS: no
With memory card: no

Characteristics

Type of voltage of the supply voltageAC
Supply voltage230 V
Number of channels2
HABEGN200 Bluetooth 2-channel
ManufacturerHAGER
HANEGN200
GTIN3250617579919
Width35.8 mm
Width in pitch units2
Height90 mm
Mounting typeDIN rail
IP protection)IP20
Depth61.6 mm
Supply voltage230V
